kubernetes集群交付一套ELK Stack日志分析

K8S ELK日志分析

日志，对于任何系统来说都是及其重要的组成部分，在计算机系统中比较复杂，日志有不同的来源，如操作系统，应用服务，业务逻辑等，它们都在不停产生各种各样的日志。
K8S系统里的业务应用是高度 “动态化”的，随着容器编排的进行，业务容器在不断的被创建、被销毁、被迁移、被扩缩容…

需要建立一套集中式的方法，把不同来源的数据集中整合到一个地方

  • 收集—能够采集多种来源的日志数据（流式日志收集器）
  • 传输—能够稳定的把日志数据传输到中央系统（消息队列）
  • 存储—可以将日志以结构化数据的形式存储起来（搜索引擎）
  • 分析—支持方便的分析、检索方法，最好有GUI管理系统（前端）
  • 告警—能够提供错误报告，监控机制（监控工具）

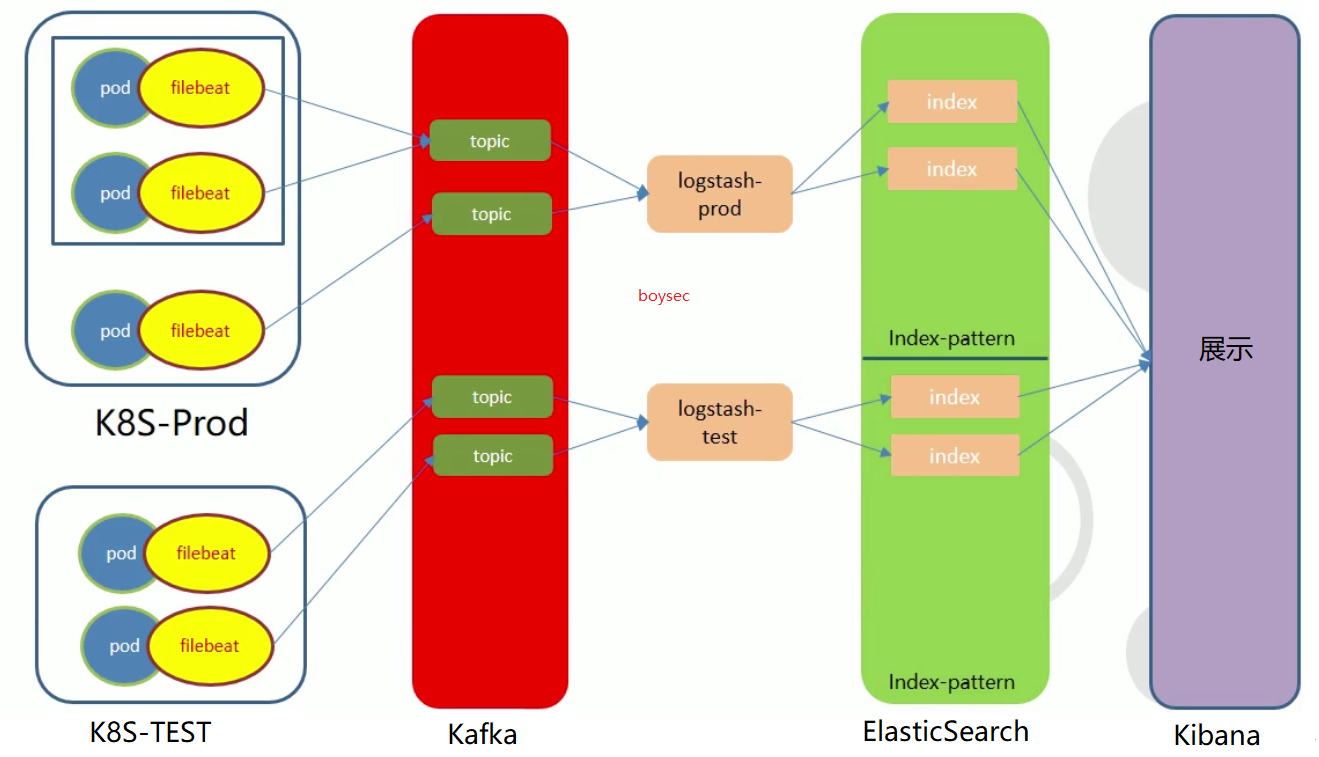

开源解决方案—ELK Stack：

  • E – ElasticSearch
  • L – LogStash
  • K – Kibana

elasticsearch安装部署

https://www.elastic.co/

https://github.com/elastic/elasticsearch

https://artifacts.elastic.co/downloads/elasticsearch/elasticsearch-6.8.14.rpm

k8s-master.boysec.cn上安装：

1
2
3
4
5
[root@k8s-master ~]# cd /tools/
[root@k8s-master tools]# wget https://artifacts.elastic.co/downloads/elasticsearch/elasticsearch-6.8.14.rpm
[root@k8s-master tools]# rpm -ivh elasticsearch-6.8.14.rpm
[root@k8s-master tools]# systemctl daemon-reload
[root@k8s-master tools]# systemctl enable elasticsearch.service

配置

1
2
3
4
5
6
7
8
# vim /etc/elasticsearch/elasticsearch.yml
cluster.name: es.od.com
node.name: k8s-master.boysec.cn
path.data: /var/lib/elasticsearch
path.logs: /var/log/elasticsearch
bootstrap.memory_lock: true
network.host: 10.1.1.120
http.port: 9200

修改JVM参数

1
2
3
# vim /etc/elasticsearch/jvm.options
-Xms512m
-Xmx512m

修改文件描述符

1
2
3
4
5
6
cat > /etc/security/limits.d/es.conf <<EOF
elasticsearch hard nofile 65536
elasticsearch soft fsize unlimited
elasticsearch hard memlock unlimited
elasticsearch soft memlock unlimited
EOF

启动elasticsearch

1
2
3
4
5
6
7
8
9
10
11
12
13
14
systemctl start elasticsearch.service
netstat -lnpt|grep 9200
tcp6       0      0 10.1.1.120:9200         :::*                    LISTEN      114845/java

# 常见报错
cat /var/log/elasticsearch/k8s-logs.log
---
[1] bootstrap checks failed
[1]: memory locking requested for elasticsearch process but memory is not locked
----

# 解决办法
# 在/usr/lib/systemd/system/elasticsearch.service"添加
# [Service]字段下添加 LimitMEMLOCK=infinity

调整ES日志模板

1
2
3
4
5
6
7
8
curl -H "Content-Type:application/json" -XPUT http://10.1.1.120:9200/_template/k8s -d '{
  "template" : "k8s*",
  "index_patterns": ["k8s*"],
  "settings": {
    "number_of_shards": 5,
    "number_of_replicas": 0
  }
}'

kafka安装部署

Kafka是最初由Linkedin公司开发，是一个分布式、分区的、多副本的、多订阅者，基于zookeeper协调的分布式日志系统（也可以当做MQ系统），常见可以用于web/nginx日志、访问日志，消息服务等等，Linkedin于2010年贡献给了Apache基金会并成为顶级开源项目。

主要应用场景是：日志收集系统和消息系统。

官网地址
Github地址

k8s-slave.boysec.cn上:

1
2
3
4
[root@k8s-slave ~]# cd /tools/
[root@k8s-slave tools]# wget https://archive.apache.org/dist/kafka/2.2.0/kafka_2.12-2.2.0.tgz
[root@k8s-slave tools]# tar xf kafka_2.12-2.2.0.tgz -C /opt/
[root@k8s-slave tools]# ln -s /opt/kafka_2.12-2.2.0/ /opt/kafka

配置

1
2
3
4
5
6
7
8
9
[root@k8s-slave kafka]# vim /opt/kafka/config/server.properties
log.dirs=/data/kafka/logs
zookeeper.connect=localhost:2181
log.flush.interval.messages=10000
log.flush.interval.ms=1000
delete.topic.enable=true
host.name=k8s-slave.boysec.cn

[root@k8s-slave kafka]# mkdir -p /data/kafka/logs

启动

1
2
3
[root@k8s-slave kafka]# /opt/kafka/bin/kafka-server-start.sh -daemon /opt/kafka/config/server.properties
[root@k8s-slave kafka]# netstat -lntup |grep 9092
tcp6       0      0 10.1.1.130:9092         :::*                    LISTEN      103655/java

kafka-manager(可选安装)

https://github.com/yahoo/kafka-manager
https://github.com/yahoo/kafka-manager/archive/2.0.0.2.tar.gz

k8s-dns.boysec.cn上:

1
2
mkdir /data/dockerfile/kafka-manager
cd /data/dockerfile/kafka-manager

方法一

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
FROM hseeberger/scala-sbt

ENV ZK_HOSTS=10.1.1.130:2181 \
     KM_VERSION=2.0.0.2

RUN mkdir -p /tmp && \
    cd /tmp && \
    wget https://github.com/yahoo/kafka-manager/archive/${KM_VERSION}.tar.gz && \
    tar xf ${KM_VERSION}.tar.gz && \
    cd /tmp/CMAK-${KM_VERSION} && \
    sbt clean dist && \
    unzip  -d / ./target/universal/kafka-manager-${KM_VERSION}.zip && \
    rm -fr /tmp/${KM_VERSION} /tmp/kafka-manager-${KM_VERSION}

WORKDIR /kafka-manager-${KM_VERSION}

EXPOSE 9000
ENTRYPOINT ["./bin/kafka-manager","-Dconfig.file=conf/application.conf"]

构建镜像

1
docker build . -t harbor.od.com/infra/kafka-manager:v2.0.0.2

方法二

注意：直接下载镜像(本人已做出3.0.0.5版本kafaka-manager，以支持kafak2.4。使用请自己测试！)

1
2
3
docker pull wangxiansen/kafka-manager:v2.0.0.2 #wangxiansen/kafka-manager:v3.0.0.5
docker tag wangxiansen/kafka-manager:v2.0.0.2 harbor.od.com/infra/kafka-manager:v2.0.0.2
docker push harbor.od.com/infra/kafka-manager:v2.0.0.2

资源配置清单

1
2
[root@k8s-dns ~]# mkdir /var/k8s-yaml/kafka-manager
[root@k8s-dns ~]# cd /var/k8s-yaml/kafka-manager

vim /var/k8s-yaml/kafka-manager/deployment.yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
kind: Deployment
apiVersion: apps/v1
metadata:
  name: kafka-manager
  namespace: infra
  labels:
    name: kafka-manager
spec:
  replicas: 1
  selector:
    matchLabels:
      app: kafka-manager
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 1
      maxSurge: 1
  revisionHistoryLimit: 7
  progressDeadlineSeconds: 600
  template:
    metadata:
      labels:
        app: kafka-manager
    spec:
      containers:
      - name: kafka-manager
        image: harbor.od.com/infra/kafka-manager:v2.0.0.2
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 9000
          protocol: TCP
        env:
        - name: ZK_HOSTS
          value: zk4.od.com:2181
        - name: APPLICATION_SECRET
          value: letmein
      imagePullSecrets:
      - name: harbor
      terminationGracePeriodSeconds: 30
      securityContext:
        runAsUser: 0

vim /var/k8s-yaml/kafka-manager/svc.yaml

1
2
3
4
5
6
7
8
9
10
11
12
kind: Service
apiVersion: v1
metadata:
  name: kafka-manager
  namespace: infra
spec:
  ports:
  - protocol: TCP
    port: 9000
    targetPort: 9000
  selector:
    app: kafka-manager

vim /var/k8s-yaml/kafka-manager/ingress.yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
kind: Ingress
apiVersion: extensions/v1beta1
metadata:
  name: kafka-manager
  namespace: infra
spec:
  rules:
  - host: km.od.com
    http:
      paths:
      - path: /
        backend:
          serviceName: kafka-manager
          servicePort: 9000

dns解析记录

1
2
3
[root@k8s-dns ~]# vi /var/named/chroot/etc/od.com.zone
...
km       A 10.1.1.50

应用配置清单

在任意一台k8s运算节点执行：

1
2
3
kubectl apply -f http://k8s-yaml.od.com/kafka-manager/deployment.yaml
kubectl apply -f http://k8s-yaml.od.com/kafka-manager/svc.yaml
kubectl apply -f http://k8s-yaml.od.com/kafka-manager/ingress.yaml

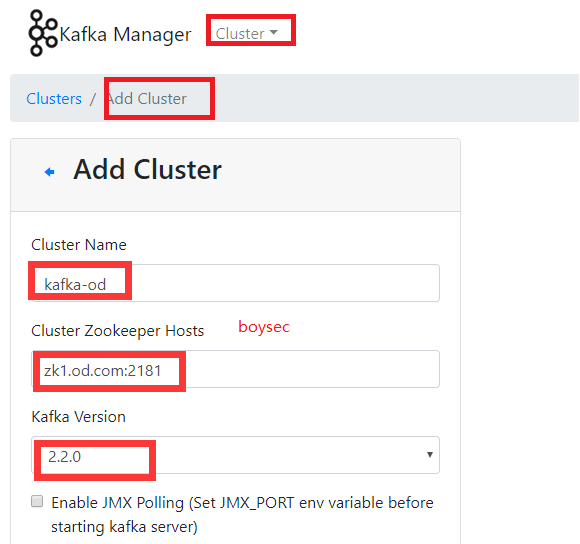

http://km.od.com/

filebeat安装部署

https://www.elastic.co/downloads/beats/filebeat

制作docker镜像

1
2
[root@k8s-dns ~]# mkdir /data/dockerfile/filebeat
[root@k8s-dns ~]# cd /data/dockerfile/filebeat

vim /data/dockerfile/filebeat/Dockerfile

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
FROM debian:jessie

ENV FILEBEAT_VERSION=7.4.0 \
    FILEBEAT_SHA1=c63bb1e16f7f85f71568041c78f11b57de58d497ba733e398fa4b2d071270a86dbab19d5cb35da5d3579f35cb5b5f3c46e6e08cdf840afb7c347777aae5c4e11

RUN set -x && \
  apt-get update && \
  apt-get install -y wget && \
  wget https://artifacts.elastic.co/downloads/beats/filebeat/filebeat-${FILEBEAT_VERSION}-linux-x86_64.tar.gz -O /opt/filebeat.tar.gz && \
  cd /opt && \
  echo "${FILEBEAT_SHA1}  filebeat.tar.gz" | sha512sum -c - && \
  tar xzvf filebeat.tar.gz && \
  cd filebeat-* && \
  cp filebeat /bin && \
  cd /opt && \
  rm -rf filebeat* && \
  apt-get purge -y wget && \
  apt-get autoremove -y && \
  apt-get clean && rm -rf /var/lib/apt/lists/* /tmp/* /var/tmp/*

COPY docker-entrypoint.sh /
ENTRYPOINT ["/docker-entrypoint.sh"]

vim /data/dockerfile/filebeat/docker-entrypoint.sh

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
#!/bin/bash

ENV=${ENV:-"test"}
PROJ_NAME=${PROJ_NAME:-"no-define"}
MULTILINE=${MULTILINE:-"^\d{2}"}

cat > /etc/filebeat.yaml << EOF
filebeat.inputs:
- type: log
  fields_under_root: true
  fields:
    topic: logm-${PROJ_NAME}
  paths:
    - /logm/*.log
    - /logm/*/*.log
    - /logm/*/*/*.log
    - /logm/*/*/*/*.log
    - /logm/*/*/*/*/*.log
  scan_frequency: 120s
  max_bytes: 10485760
  multiline.pattern: '$MULTILINE'
  multiline.negate: true
  multiline.match: after
  multiline.max_lines: 100
- type: log
  fields_under_root: true
  fields:
    topic: logu-${PROJ_NAME}
  paths:
    - /logu/*.log
    - /logu/*/*.log
    - /logu/*/*/*.log
    - /logu/*/*/*/*.log
    - /logu/*/*/*/*/*.log
    - /logu/*/*/*/*/*/*.log
output.kafka:
  hosts: ["10.1.1.130:9092"]
  topic: k8s-fb-$ENV-%{[topic]}
  version: 2.0.0
  required_acks: 0
  max_message_bytes: 10485760
EOF

set -xe

# If user don't provide any command
# Run filebeat
if [[ "$1" == "" ]]; then
     exec filebeat  -c /etc/filebeat.yaml
else
    # Else allow the user to run arbitrarily commands like bash
    exec "$@"
fi

制作镜像

1
2
docker build . -t harbor.od.com/infra/filebeat:v7.4.0
docker push harbor.od.com/infra/filebeat:v7.4.0

准备资源配置清单

使用边车模式（sidecar）来启动filebeat资源

vim /var/k8s-yaml/dubbo-demo-consumer/deployment.yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
kind: Deployment
apiVersion: apps/v1
metadata:
  name: dubbo-demo-consumer
  namespace: test
  labels:
    name: dubbo-demo-consumer
spec:
  replicas: 1
  selector:
    matchLabels:
      name: dubbo-demo-consumer
  template:
    metadata:
      labels:
        app: dubbo-demo-consumer
        name: dubbo-demo-consumer
    spec:
      containers:
      - name: dubbo-demo-consumer
        image: harbor.od.com/app/dubbo-demo-web:tomcat_20210902_2035
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 8080
          protocol: TCP
        env:
        - name: C_OPTS
          value: -Denv=dev -Dapollo.meta=http://config-test.od.com
        volumeMounts:
        - mountPath: /opt/tomcat/logs
          name: logm
      - name: filebeat
        image: harbor.od.com/infra/filebeat:v7.4.0
        imagePullPolicy: IfNotPresent
        env:
        - name: ENV
          value: test
        - name: PROJ_NAME
          value: dubbo-demo-web
        volumeMounts:
        - mountPath: /logm
          name: logm
      volumes:
      - emptyDir: {}
        name: logm
      imagePullSecrets:
      - name: harbor
      restartPolicy: Always
      terminationGracePeriodSeconds: 30
      securityContext:
        runAsUser: 0
      schedulerName: default-scheduler
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 1
      maxSurge: 1
  revisionHistoryLimit: 7
  progressDeadlineSeconds: 600

边车模式优势：他们是sidecar模式运行的，他们共享UTS、USER、NET。也就是共享用户名和进程通信，隔离的是IPC、FS，文件系统不共享

应用配置清单

在任意一台k8s运算节点执行：

1
2
kubectl apply -f http://k8s-yaml.od.com/filebeat/deployment.yaml
docker ps|grep filebeat

logstash安装部署

安装选型

准备docker镜像

1
2
3
[root@k8s-dns ~]# docker pull logstash:6.8.13
[root@k8s-dns ~]# docker tag logstash:6.8.13 harbor.od.com/infra/logstash:v6.8.13
[root@k8s-dns ~]# docker push harbor.od.com/infra/logstash:v6.8.13

准备logstash配置

[root@k8s-dns ~]# mkdir /etc/logstash

vi /etc/logstash/logstash-test.conf

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
input {
  kafka {
    bootstrap_servers => "10.1.1.130:9092"
    client_id => "10.1.1.250"
    consumer_threads => 4
    group_id => "k8s_test"
    topics_pattern => "k8s-fb-test-.*"
  }
}

filter {
  json {
    source => "message"
  }
}

output {
  elasticsearch {
    hosts => ["10.1.1.120:9200"]
    index => "k8s-test-%{+YYYY.MM.DD}"
  }
}

vi /etc/logstash/logstash-prod.conf

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
input {
  kafka {
    bootstrap_servers => "10.1.1.130:9092"
    client_id => "10.1.1.254"
    consumer_threads => 4
    group_id => "k8s_prod"
    topics_pattern => "k8s-fb-prod-.*"
  }
}

filter {
  json {
    source => "message"
  }
}

output {
  elasticsearch {
    hosts => ["10.1.1.120:9200"]
    index => "k8s-prod-%{+YYYY.MM.DD}"
  }
}

启动logstash镜像验证

1
2
3
4
[root@k8s-dns ~]# docker run -d --name=logstash-test -v /etc/logstash:/etc/logstash harbor.od.com/infra/logstash:v6.8.13 -f /etc/logstash/logstash-test.conf
[root@k8s-dns ~]# curl http://10.1.1.120:9200/_cat/indices?v
health status index               uuid                   pri rep docs.count docs.deleted store.size pri.store.size
green  open   k8s-test-2021.03.63 j6jQSHRqSgm3s_LfXUVAbg   5   0          3            0       460b           460b

kibana安装部署

1
2
3
[root@k8s-dns ~]# docker pull kibana:6.8.13
[root@k8s-dns ~]# docker tag kibana:6.8.13 harbor.od.com/infra/kibana:v6.8.13
[root@k8s-dns ~]# docker push harbor.od.com/infra/kibana:v6.8.13

准备资源配置清单

1
2
[root@k8s-dns ~]# mkdir /var/k8s-yaml/kibana
[root@k8s-dns ~]# cd /var/k8s-yaml/kibana

vim /var/k8s-yaml/kibana/deployment.yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
kind: Deployment
apiVersion: apps/v1
metadata:
  name: kibana
  namespace: infra
  labels:
    name: kibana
spec:
  replicas: 1
  selector:
    matchLabels:
      name: kibana
  template:
    metadata:
      labels:
        app: kibana
        name: kibana
    spec:
      containers:
      - name: kibana
        image: harbor.od.com/infra/kibana:v6.8.13
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 5601
          protocol: TCP
        env:
        - name: ELASTICSEARCH_URL
          value: http://10.1.1.120:9200
      imagePullSecrets:
      - name: harbor
      securityContext:
        runAsUser: 0
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 1
      maxSurge: 1
  revisionHistoryLimit: 7
  progressDeadlineSeconds: 600

vim /var/k8s-yaml/kibana/svc.yaml

1
2
3
4
5
6
7
8
9
10
11
12
kind: Service
apiVersion: v1
metadata:
  name: kibana
  namespace: infra
spec:
  ports:
  - protocol: TCP
    port: 5601
    targetPort: 5601
  selector:
    app: kibana

vim /var/k8s-yaml/kibana/ingress.yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
kind: Ingress
apiVersion: extensions/v1beta1
metadata:
  name: kibana
  namespace: infra
spec:
  rules:
  - host: kibana.od.com
    http:
      paths:
      - path: /
        backend:
          serviceName: kibana
          servicePort: 5601

DNS解析记录

1
2
3
[root@k8s-dns ~]# vi /var/named/chroot/etc/od.com.zone
...
kibana       A 10.1.1.50

应用配置清单

在任意一台k8s运算节点执行：

1
2
3
kubectl apply -f http://k8s-yaml.od.com/kibana/deployment.yaml
kubectl apply -f http://k8s-yaml.od.com/kibana/svc.yaml
kubectl apply -f http://k8s-yaml.od.com/kibana/ingress.yaml

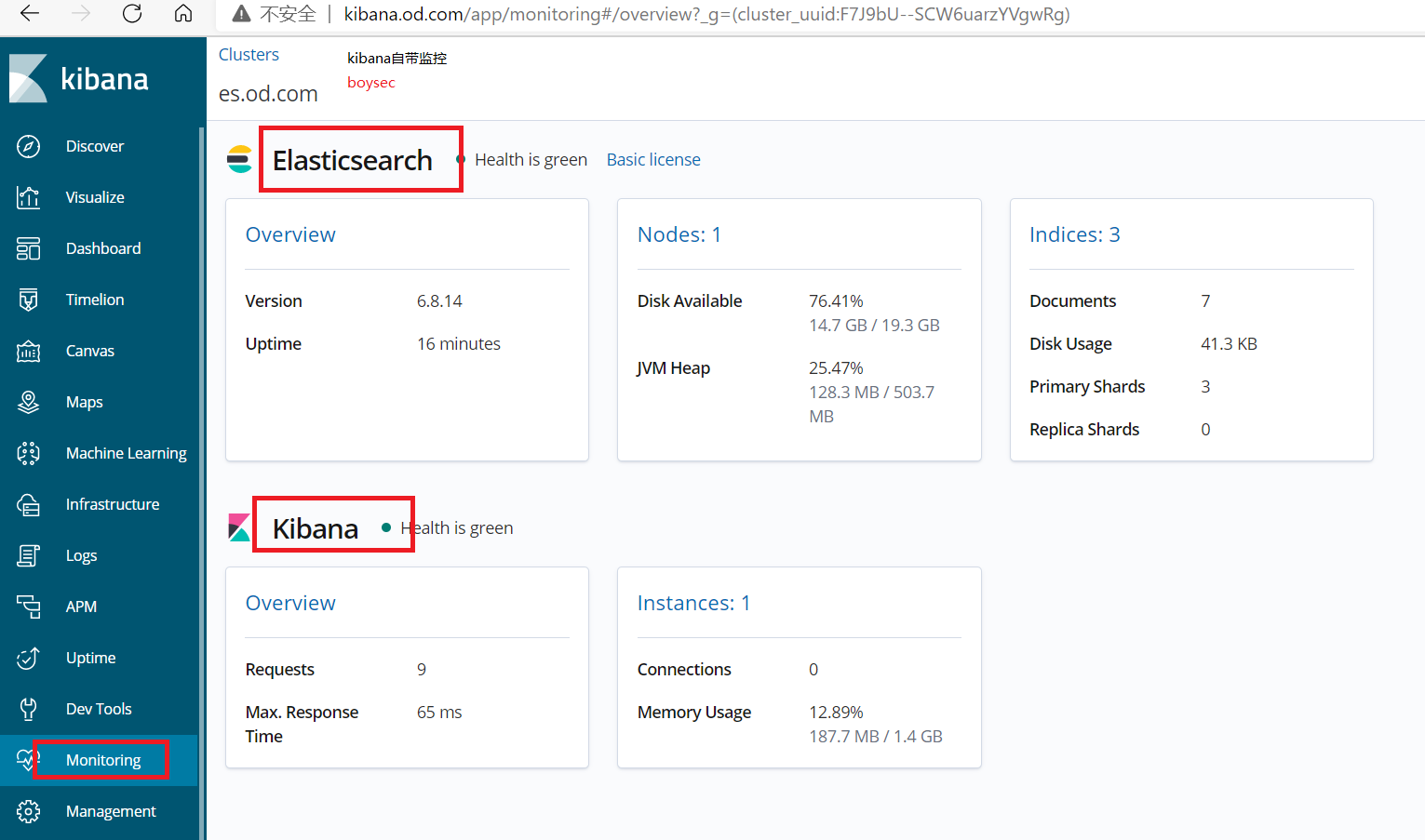

浏览器访问

http://kibana.od.com

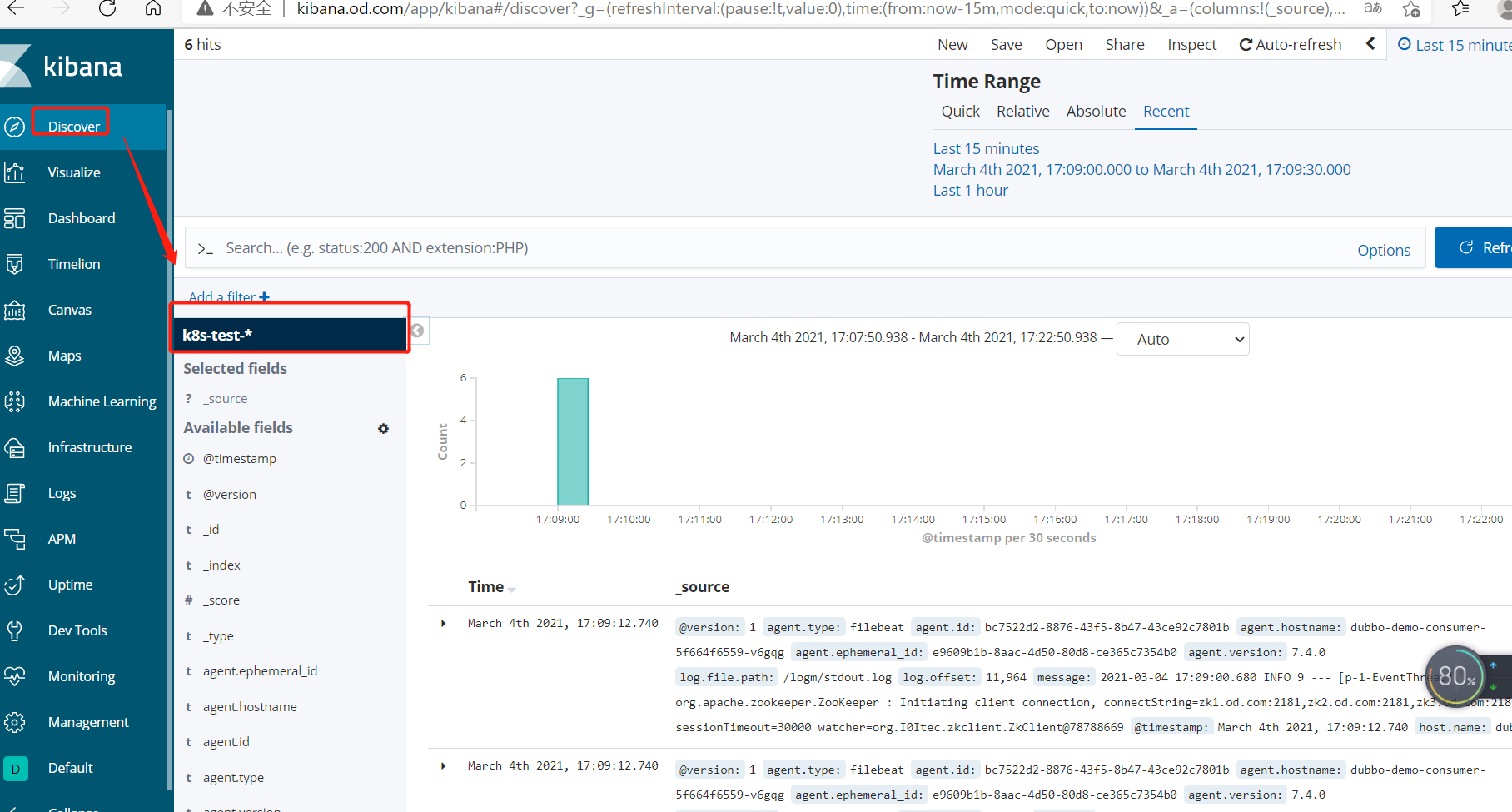

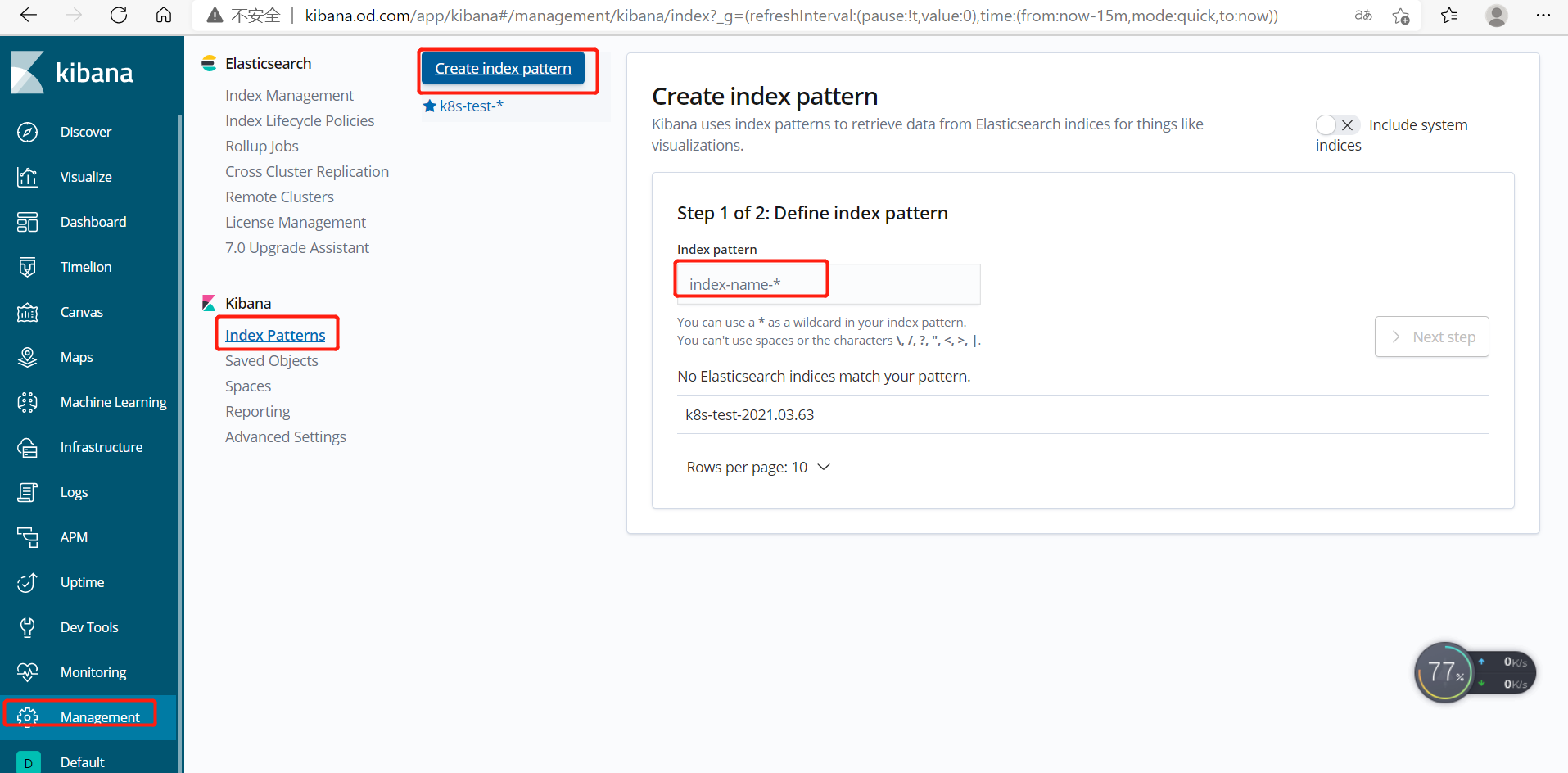

添加日志

kibana培训专用

时间选择器（一）

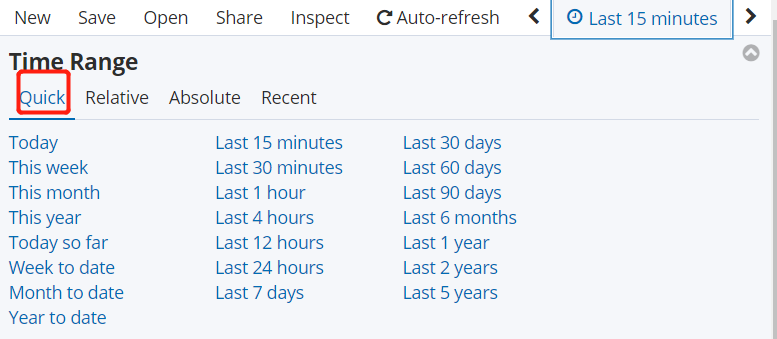

选择时间(当前、这星期、这月、这年)

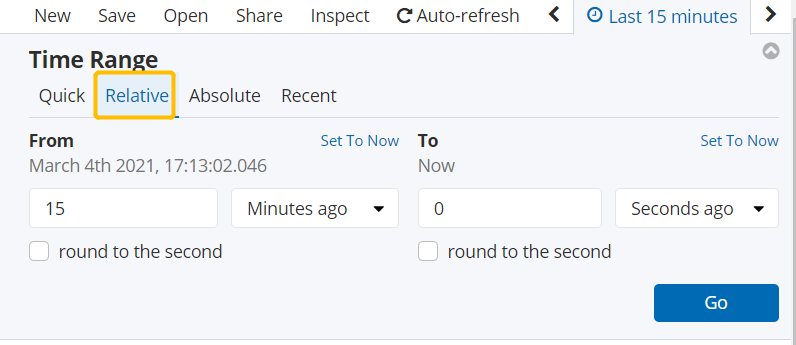

相对时间

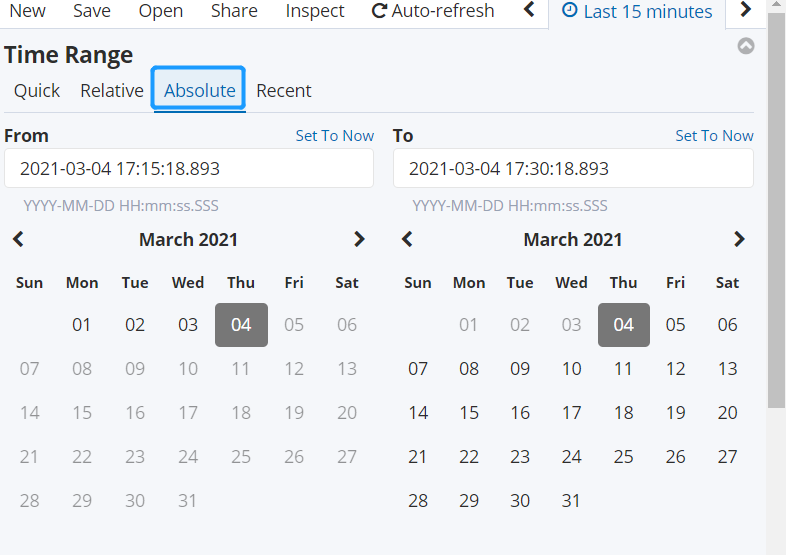

绝对时间

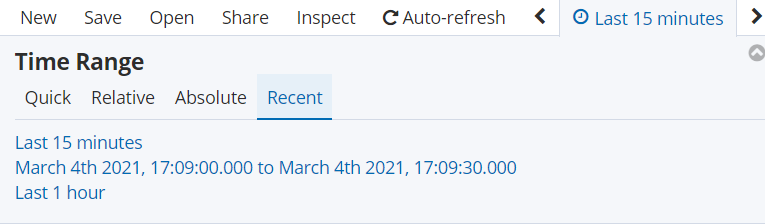

最近时间

环境选择器(二)

用于区分各种环境

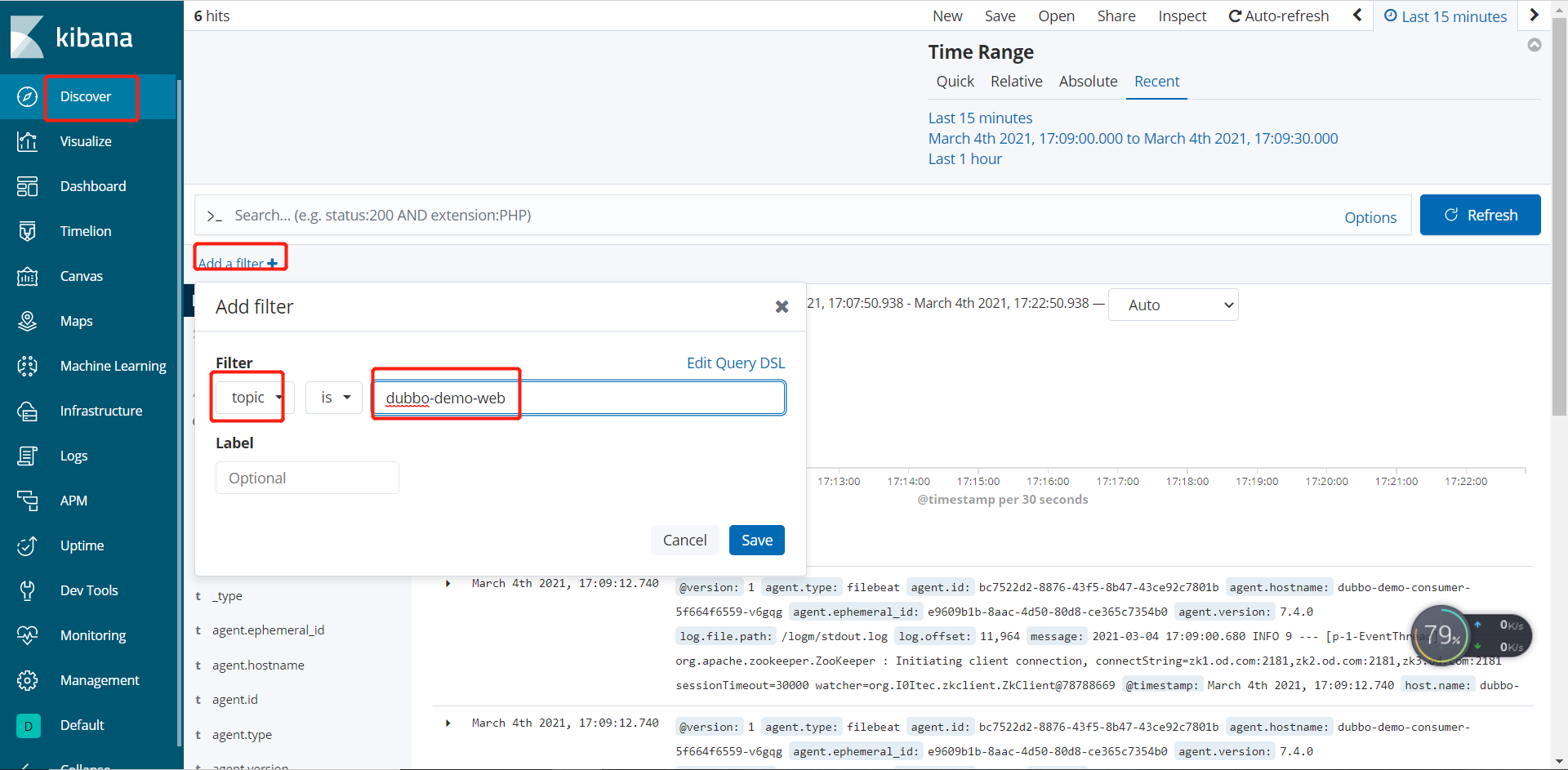

项目选择器(三)

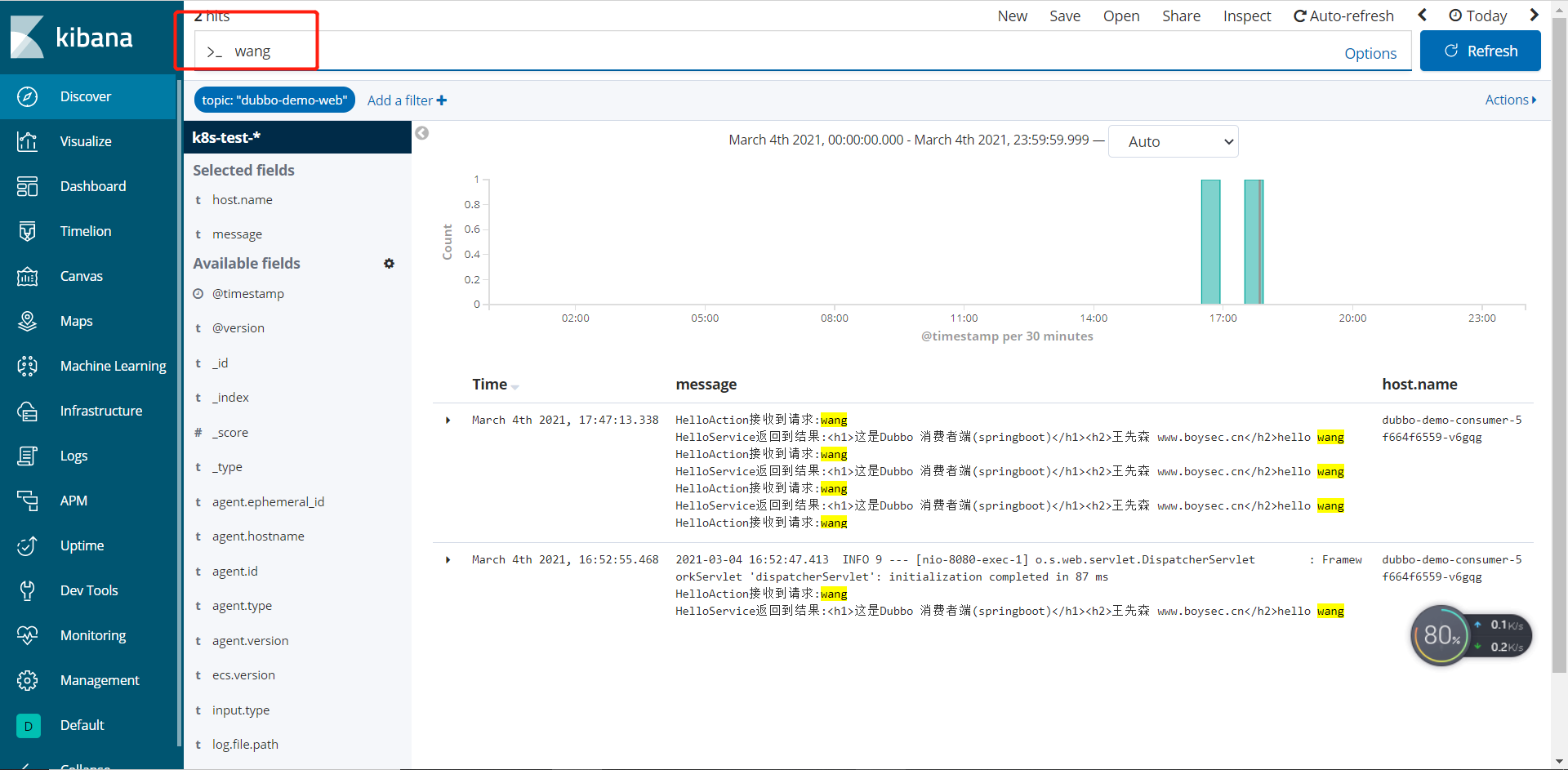

关键字选择器(四)
