Kubernetes-v1-24版安装部署之Node节点安装部署

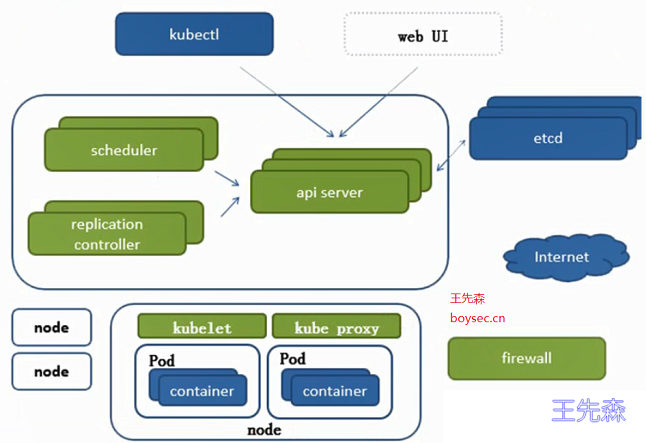

K8S Node简介

  • k8s的node节点需要安装三个组件：containerd/kubelet/kube-proxy
  • pod是存储容器的容器，但容器不止docker一种。
  • CRI：container runtime interface
  • kubelet：用于操作containerd容器，维持pod的生命周期 。
  • kube proxy：负载均衡就是通过kube proxy组件完成的。并且，pod与pod之间的通信，各pod间的负载均衡都是通过它来实现的。默认是通过操作防火墙firewall来实现pod的映射。

kubelet安装部署

创建工作目录

1
2
3
4
5
6
mkdir -p /opt/kubernetes/{bin,cfg,ssl,logs}
tar xf kubernetes-v1.24.0.tar.gz
cd /server/tools/kubernetes/server/bin
cp kubelet /opt/kubernetes/bin
## 复制证书到所有节点
scp 10.1.1.11:/opt/certs/ca.pem /opt/kubernetes/ssl/

配置文件编写

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
cat > /opt/kubernetes/cfg/kubelet.conf << EOF
KUBELET_OPTS="--logtostderr=false \\
--v=4 \\
--log-dir=/opt/kubernetes/logs \\
--hostname-override=k8s-master \\
--cgroup-driver=systemd \\
--kubeconfig=/opt/kubernetes/cfg/kubelet.kubeconfig \\
--bootstrap-kubeconfig=/opt/kubernetes/cfg/bootstrap.kubeconfig \\
--container-runtime=remote  \\
--runtime-request-timeout=15m  \\
--runtime-cgroups=/systemd/system.slice --kubelet-cgroups=/systemd/system.slice \\
--container-runtime-endpoint=unix:///run/containerd/containerd.sock  \\
--config=/opt/kubernetes/cfg/kubelet-config.yml \\
--cert-dir=/opt/kubernetes/ssl \\
--pod-infra-container-image=kubernetes/pause"
EOF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
cat > /opt/kubernetes/cfg/kubelet.conf << EOF
KUBELET_OPTS="--logtostderr=false \\
--v=4 \\
--log-dir=/opt/kubernetes/logs \\
--hostname-override=k8s-node1 \\
--cgroup-driver=systemd \\
--kubeconfig=/opt/kubernetes/cfg/kubelet.kubeconfig \\
--bootstrap-kubeconfig=/opt/kubernetes/cfg/bootstrap.kubeconfig \\
--container-runtime=remote  \\
--runtime-request-timeout=15m  \\
--runtime-cgroups=/systemd/system.slice --kubelet-cgroups=/systemd/system.slice \\
--container-runtime-endpoint=unix:///run/containerd/containerd.sock  \\
--config=/opt/kubernetes/cfg/kubelet-config.yml \\
--cert-dir=/opt/kubernetes/ssl \\
--pod-infra-container-image=kubernetes/pause"
EOF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
cat > /opt/kubernetes/cfg/kubelet.conf << EOF
KUBELET_OPTS="--logtostderr=false \\
--v=4 \\
--log-dir=/opt/kubernetes/logs \\
--hostname-override=k8s-node2 \\
--cgroup-driver=systemd \\
--kubeconfig=/opt/kubernetes/cfg/kubelet.kubeconfig \\
--bootstrap-kubeconfig=/opt/kubernetes/cfg/bootstrap.kubeconfig \\
--container-runtime=remote  \\
--runtime-request-timeout=15m  \\
--runtime-cgroups=/systemd/system.slice --kubelet-cgroups=/systemd/system.slice \\
--container-runtime-endpoint=unix:///run/containerd/containerd.sock  \\
--config=/opt/kubernetes/cfg/kubelet-config.yml \\
--cert-dir=/opt/kubernetes/ssl \\
--pod-infra-container-image=kubernetes/pause"
EOF

配置参数文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
cat > /opt/kubernetes/cfg/kubelet-config.yml << EOF
kind: KubeletConfiguration
apiVersion: kubelet.config.k8s.io/v1beta1
address: 0.0.0.0
port: 10250
readOnlyPort: 10255
cgroupDriver: cgroupfs
clusterDNS:
- 192.168.0.2
clusterDomain: cluster.local
failSwapOn: false
authentication:
  anonymous:
    enabled: false
  webhook:
    cacheTTL: 2m0s
    enabled: true
  x509:
    clientCAFile: /opt/kubernetes/ssl/ca.pem
authorization:
  mode: Webhook
  webhook:
    cacheAuthorizedTTL: 5m0s
    cacheUnauthorizedTTL: 30s
evictionHard:
  imagefs.available: 15%
  memory.available: 100Mi
  nodefs.available: 10%
  nodefs.inodesFree: 5%
maxOpenFiles: 1000000
maxPods: 110
EOF

生成kubelet初次加入集群引导kubeconfig文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
# 设置环境变量
 KUBE_CONFIG="/opt/kubernetes/cfg/bootstrap.kubeconfig"
 KUBE_APISERVER="https://10.1.1.100:6443" # apiserver IP:PORT
 TOKEN="bc43e407e311d78b60da186fdd347fc8" # 与token.csv里保持一致

 # 生成 kubelet bootstrap kubeconfig 配置文件
kubectl config set-cluster kubernetes \
  --certificate-authority=/opt/kubernetes/ssl/ca.pem \
  --embed-certs=true \
  --server=${KUBE_APISERVER} \
  --kubeconfig=${KUBE_CONFIG}
kubectl config set-credentials "kubelet-bootstrap" \
  --token=${TOKEN} \
  --kubeconfig=${KUBE_CONFIG}
kubectl config set-context default \
  --cluster=kubernetes \
  --user="kubelet-bootstrap" \
  --kubeconfig=${KUBE_CONFIG}
kubectl config use-context default --kubeconfig=${KUBE_CONFIG}


## 分发到node节点
scp /opt/kubernetes/cfg/bootstrap.kubeconfig k8s-node1:/opt/kubernetes/cfg/bootstrap.kubeconfig
scp /opt/kubernetes/cfg/bootstrap.kubeconfig k8s-node2:/opt/kubernetes/cfg/bootstrap.kubeconfig

kubelet启动文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
cat > /usr/lib/systemd/system/kubelet.service << EOF
[Unit]
Description=Kubernetes Kubelet
After=containerd.service

[Service]
EnvironmentFile=/opt/kubernetes/cfg/kubelet.conf
ExecStart=/opt/kubernetes/bin/kubelet \$KUBELET_OPTS
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target
EOF

启动kubelet

1
2
systemctl daemon-reload
systemctl enable --now kubelet

批准kubelet证书申请并加入集群

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
# 查看kubelet证书请求
# kubectl get csr
NAME                                                   AGE     SIGNERNAME                                    REQUESTOR           REQUESTEDDURATION   CONDITION
node-csr-XaZydv0EWtYv8U1N-AApIQ7vDxGqXq7UhKKEbSxBX1M   11m     kubernetes.io/kube-apiserver-client-kubelet   kubelet-bootstrap   <none>              Pending
node-csr-rXbrF-8XLWZdd0p2SQtMPDRPZpaQBAm-4Kq2vztXP-I   10m     kubernetes.io/kube-apiserver-client-kubelet   kubelet-bootstrap   <none>              Pending
node-csr-zx87_5I9BK91wf-yI7eAl_2iew7u_3pFcEFYO9mfi_4   9m34s   kubernetes.io/kube-apiserver-client-kubelet   kubelet-bootstrap   <none>              Pending

# 批准申请（每个人的证书都不一样）
kubectl certificate approve node-csr-XaZydv0EWtYv8U1N-AApIQ7vDxGqXq7UhKKEbSxBX1M
kubectl certificate approve node-csr-rXbrF-8XLWZdd0p2SQtMPDRPZpaQBAm-4Kq2vztXP-I
kubectl certificate approve node-csr-zx87_5I9BK91wf-yI7eAl_2iew7u_3pFcEFYO9mfi_4

# 查看节点
[root@k8s-master1 ~]# kubectl get node
NAME          STATUS     ROLES    AGE   VERSION
k8s-master1   NotReady   <none>   18s   v1.24.0
k8s-node1     NotReady   <none>   15s   v1.24.0
k8s-node2     NotReady   <none>   6s    v1.24.0

遇到问题

node节点名称写错

1
E0517 13:18:19.033666    7310 kubelet.go:2419] "Error getting node" err="node \"k8s-node2\" not found"

解决：

在node2节点上删除master节点批准其加入集群时，自动颁发的证书：

  • 自动颁发的证书，在Node节点上的目录：/opt/kubernetes/ssl/
  • 删除证书自动颁发的是kubelet的证书
1
2
3
4
rm -f /opt/kubernetes/ssl/kubelet*

# 重启kubelet；
systemctl restart kubelet
  • 此时在master节点执行：kubectl get csr 可以看到node01节点重新申请加入集群；

kube-proxy安装

创建证书请求文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
cat > /opt/certs/kube-proxy-csr.json << EOF
{
  "CN": "system:kube-proxy",
  "hosts": [],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "L": "BeiJing",
      "ST": "BeiJing",
      "O": "k8s",
      "OU": "System"
    }
  ]
}
EOF

# 生成证书
cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes kube-proxy-csr.json | cfssljson -bare kube-proxy

# 复制证书
scp kube-proxy*.pem 10.1.1.100:/opt/kubernetes/ssl/
scp kube-proxy*.pem 10.1.1.120:/opt/kubernetes/ssl/
scp kube-proxy*.pem 10.1.1.130:/opt/kubernetes/ssl/

配置证书、执行脚本

1
2
3
4
cd /server/tools/kubernetes/server/bin
cp kube-proxy /opt/kubernetes/bin
# 复制证书到所有节点
scp 10.1.1.11:/opt/certs/kube-proxy*.pem /opt/kubernetes/ssl/

生成kubeconfig文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
KUBE_CONFIG="/opt/kubernetes/cfg/kube-proxy.kubeconfig"
KUBE_APISERVER="https://10.1.1.100:6443"

kubectl config set-cluster kubernetes \
  --certificate-authority=/opt/kubernetes/ssl/ca.pem \
  --embed-certs=true \
  --server=${KUBE_APISERVER} \
  --kubeconfig=${KUBE_CONFIG}
kubectl config set-credentials kube-proxy \
  --client-certificate=/opt/kubernetes/ssl/kube-proxy.pem \
  --client-key=/opt/kubernetes/ssl/kube-proxy-key.pem \
   --embed-certs=true \
  --kubeconfig=${KUBE_CONFIG}
kubectl config set-context default \
  --cluster=kubernetes \
  --user=kube-proxy \
  --kubeconfig=${KUBE_CONFIG}
kubectl config use-context default --kubeconfig=${KUBE_CONFIG}

## 分发到node节点
scp /opt/kubernetes/cfg/kube-proxy.kubeconfig k8s-node1:/opt/kubernetes/cfg/kube-proxy.kubeconfig
scp /opt/kubernetes/cfg/kube-proxy.kubeconfig k8s-node2:/opt/kubernetes/cfg/kube-proxy.kubeconfig

创建配置文件

1
2
3
4
5
6
cat > /opt/kubernetes/cfg/kube-proxy.conf << EOF
KUBE_PROXY_OPTS="--logtostderr=false \\
--v=2 \\
--log-dir=/opt/kubernetes/logs \\
--config=/opt/kubernetes/cfg/kube-proxy-config.yml"
EOF

配置参数文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
cat > /opt/kubernetes/cfg/kube-proxy-config.yml << EOF
KUBE_PROXY_OPTS="--logtostderr=false \
--v=4 \
--log-dir=/opt/kubernetes/logs \
--config=/opt/kubernetes/cfg/kube-proxy-config.yml"
EOF

cat > /opt/kubernetes/cfg/kube-proxy-config.yml << EOF
kind: KubeProxyConfiguration
apiVersion: kubeproxy.config.k8s.io/v1alpha1
bindAddress: 0.0.0.0
metricsBindAddress: 10.1.1.100:10249
clientConnection:
  kubeconfig: /opt/kubernetes/cfg/kube-proxy.kubeconfig
hostnameOverride: k8s-master1
clusterCIDR: 172.7.0.0/16
# 以下可选
#configSyncPeriod: 15m0s
#conntrack:
#  max: null
#  maxPerCore: 32768
#  min: 131072
#  tcpCloseWaitTimeout: 1h0m0s
#  tcpEstablishedTimeout: 24h0m0s
#enableProfiling: false
#healthzBindAddress: 0.0.0.0:10256
#hostnameOverride: ""
#iptables:
#  masqueradeAll: false
#  masqueradeBit: 14
#  minSyncPeriod: 0s
#  syncPeriod: 30s
#ipvs:
#  masqueradeAll: true
#  minSyncPeriod: 5s
#  scheduler: "rr"
#  syncPeriod: 30s
#mode: "ipvs"
#nodePortAddresses: null
#oomScoreAdj: -999
#portRange: ""
#udpIdleTimeout: 250ms
EOF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
cat > /opt/kubernetes/cfg/kube-proxy-config.yml << EOF
KUBE_PROXY_OPTS="--logtostderr=false \
--v=4 \
--log-dir=/opt/kubernetes/logs \
--config=/opt/kubernetes/cfg/kube-proxy-config.yml"
EOF

cat > /opt/kubernetes/cfg/kube-proxy-config.yml << EOF
kind: KubeProxyConfiguration
apiVersion: kubeproxy.config.k8s.io/v1alpha1
bindAddress: 0.0.0.0
metricsBindAddress: 10.1.1.120:10249
clientConnection:
  kubeconfig: /opt/kubernetes/cfg/kube-proxy.kubeconfig
hostnameOverride: k8s-node1
clusterCIDR: 172.7.0.0/16
EOF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
cat > /opt/kubernetes/cfg/kube-proxy-config.yml << EOF
KUBE_PROXY_OPTS="--logtostderr=false \
--v=4 \
--log-dir=/opt/kubernetes/logs \
--config=/opt/kubernetes/cfg/kube-proxy-config.yml"
EOF

cat > /opt/kubernetes/cfg/kube-proxy-config.yml << EOF
kind: KubeProxyConfiguration
apiVersion: kubeproxy.config.k8s.io/v1alpha1
bindAddress: 0.0.0.0
metricsBindAddress: 10.1.1.130:10249
clientConnection:
  kubeconfig: /opt/kubernetes/cfg/kube-proxy.kubeconfig
hostnameOverride: k8s-node2
clusterCIDR: 172.7.0.0/16
EOF

配置kube-proxy启动文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
cat > /usr/lib/systemd/system/kube-proxy.service << EOF
[Unit]
Description=Kubernetes Proxy
After=network.target

[Service]
EnvironmentFile=/opt/kubernetes/cfg/kube-proxy.conf
ExecStart=/opt/kubernetes/bin/kube-proxy \$KUBE_PROXY_OPTS
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target
EOF

启动kube-proxy

1
2
3
4
5
6
7
systemctl daemon-reload
systemctl enable --now kube-proxy

# 检查
[root@k8s-node2 ~]# netstat -lnpt|grep kube-proxy
tcp        0      0 10.1.1.130:10249        0.0.0.0:*               LISTEN      2030/kube-proxy
tcp6       0      0 :::10256                :::*                    LISTEN      2030/kube-proxy

安装网络组件（flannel）

大家可以发现k8s所有组件都安装完成后集群状态还是NotReady，这里通过kubelet报错就会发现缺少网络组件，这里就不介绍了，详情可以看我另一篇文章。

这里选用flannel来作为网络组件使用，其他组件也是大同小异。

安装flannel

flannel下载地址

1
2
3
4
5
6
7
8
9
10
11
12
13
### 进入上传文件目录
cd /server/tools

### 创建所需要文件
mkdir -p /opt/flannel-v0.17.0-linux-amd64/ssl/

### 解压创建软连接
tar xf flannel-v0.17.0-linux-amd64.tar.gz -C /opt/flannel-v0.17.0-linux-amd64/
ln -sf /opt/flannel-v0.17.0-linux-amd64/ /opt/flannel

## 复制etcd证书
cp /opt/etcd/ssl/ca.pem /opt/flannel/ssl/
cp /opt/etcd/ssl/etcd*.pem /opt/flannel/ssl/

创建网段配置文件

flannel集群各主机的配置略有不同，部署其他节点时注意修改。这样为了方便通过pod地址就可以看出在那个物理主机上。

1
2
3
4
5
6
7
8
9
10
# 创建网段
/opt/etcd/etcdctl set /coreos.com/network/config '{"Network": "172.7.0.0/16", "Backend": {"Type": "host-gw"}}'

mkdir /run/flannel
cat > /run/flannel/subnet.env << EOF
FLANNEL_NETWORK=172.7.0.0/16
FLANNEL_SUBNET=172.7.100.1/24
FLANNEL_MTU=1500
FLANNEL_IPMASQ=false
EOF
1
2
3
4
5
6
7
mkdir /run/flannel
cat > /run/flannel/subnet.env << EOF
FLANNEL_NETWORK=172.7.0.0/16
FLANNEL_SUBNET=172.7.120.1/24
FLANNEL_MTU=1500
FLANNEL_IPMASQ=false
EOF
1
2
3
4
5
6
7
mkdir /run/flannel
cat > /run/flannel/subnet.env << EOF
FLANNEL_NETWORK=172.7.0.0/16
FLANNEL_SUBNET=172.7.130.1/24
FLANNEL_MTU=1500
FLANNEL_IPMASQ=false
EOF

编辑启动文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
cat > /usr/lib/systemd/system/flanneld.service <<EOF
[Unit]
Description=Flanneld overlay address etcd agent
After=network.target
After=network-online.target
Wants=network-online.target
After=etcd.service
Before=containerd.service
[Service]
Type=notify
ExecStart=/opt/flannel/flanneld \\
  -etcd-cafile=/opt/flannel/ssl/ca.pem \\
  -etcd-certfile=/opt/flannel/ssl/etcd.pem \\
  -etcd-keyfile=/opt/flannel/ssl/etcd-key.pem \\
  -etcd-endpoints=https://10.1.1.100:2379,https://10.1.1.130:2379,https://10.1.1.120:2379 \\
  -etcd-prefix=/coreos.com/network \\
  -subnet-file=/run/flannel/subnet.env \\
  -iface=eth0 \\
  -healthz-port=2401
Restart=always
RestartSec=5
StartLimitInterval=0
[Install]
WantedBy=multi-user.target
RequiredBy=containerd.service
EOF

启动flannel

1
2
3
4
5
6
7
8
9
10
11
12
13
systemctl daemon-reload
systemctl enable --now flanneld.service

# 验证flannel
netstat -lnpt|grep flanneld
tcp6       0      0 :::2401                 :::*                    LISTEN      22665/flanneld

## 所有节点都是正常状态
kubectl get node
NAME          STATUS   ROLES    AGE     VERSION
k8s-master1   Ready    <none>   4h13m   v1.24.0
k8s-node1     Ready    <none>   4h12m   v1.24.0
k8s-node2     Ready    <none>   3h57m   v1.24.0

优化SNAT转换

为什么做SNAT优化？

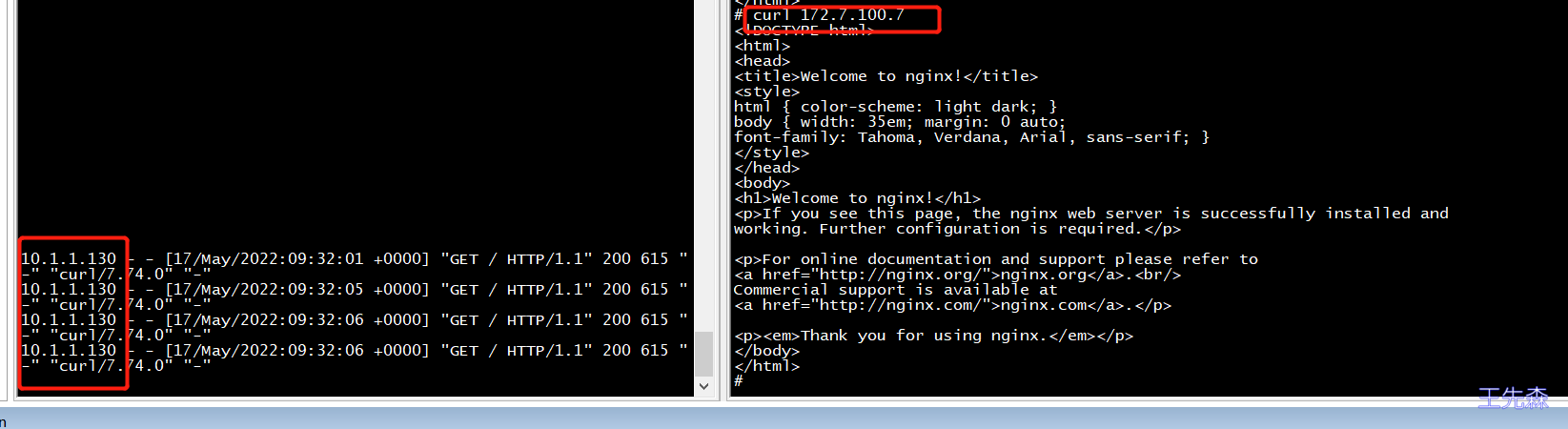

flannel之SNAT规则优化的目的是由于在K8S中的容器内，访问不同宿主机中的容器的资源的时候，日志文件会记录为宿主机的IP地址，而不是记录为容器本身自己的IP地址，建议在不同的宿主机上的容器互访的时候，在日志文件中查询到的IP地址均为容器的真实的IP地址。如下图所示，是为宿主机或进入宿主机的容器中进行curl访问另外node节点的容器，都会被记录成宿主机的IP地址，这样就会导致不同宿主机的容器互访，会经过一次SNAT转换，而实际上，不同宿主机容器之间的访问，应该会被记录为容器的实际IP地址而非宿主机的IP地址

解决两宿主机容器之间的透明访问，如不进行优化，容器之间的访问，日志记录为宿主机的IP地址。如下图

没优化前

基于Docker网络SNAT优化方案

1
2
3
4
5
6
7
8
9
10
11
12
yum -y install iptables-services
## 启动iptables
systemctl start iptables.service
systemctl enable iptables.service

## 删除这俩条规则
iptables -t filter -D INPUT -j REJECT --reject-with icmp-host-prohibited
iptables -t filter -D FORWARD -j REJECT --reject-with icmp-host-prohibited

## 优化SNAT规则
iptables -t nat -D POSTROUTING -s 172.7.21.0/24 ! -o docker0 -j MASQUERADE
iptables -t nat -I POSTROUTING -s 172.7.21.0/24 ! -d 172.7.0.0/16 ! -o docker0 -j MASQUERADE

基于cni网络SNAT优化

1
2
3
4
5
6
7
8
yum -y install iptables-services
## 启动iptables
systemctl start iptables.service
systemctl enable iptables.service

## 删除这俩条规则
iptables -t filter -D INPUT -j REJECT --reject-with icmp-host-prohibited
iptables -t filter -D FORWARD -j REJECT --reject-with icmp-host-prohibited

优化步骤

  1. 查看iptables cni规则

    1
    2
    3
    4
    5
    6
    7
    [root@k8s-master1 ~]# iptables-save |grep -i cni
    -A CNI-24765be1eb930181d4596108 -d 172.7.100.0/24 -m comment --comment "name: \"flannel\" id: \"7827fb4e07150d739ebe225e63cb7224e1567640ecd34bb31fc895eedd1e181d\"" -j ACCEPT
    -A CNI-24765be1eb930181d4596108 ! -d 224.0.0.0/4 -m comment --comment "name: \"flannel\" id: \"7827fb4e07150d739ebe225e63cb7224e1567640ecd34bb31fc895eedd1e181d\"" -j MASQUERADE
    -A CNI-29992bd4932ac4a521568c23 -d 172.7.100.0/24 -m comment --comment "name: \"flannel\" id: \"bfe43a2a876b07d82505e5d19eb4f70b3ae3073fd970e71411fa137a668e374e\"" -j ACCEPT
    -A CNI-29992bd4932ac4a521568c23 ! -d 224.0.0.0/4 -m comment --comment "name: \"flannel\" id: \"bfe43a2a876b07d82505e5d19eb4f70b3ae3073fd970e71411fa137a668e374e\"" -j MASQUERADE
    -A CNI-2d0cf8cf6f5d817c605f5d00 -d 172.7.100.0/24 -m comment --comment "name: \"flannel\" id: \"44d0c2234bc82140650b7a72dd81f95c295b1ecfe510bab0845ed00adc8b55f1\"" -j ACCEPT
    -A CNI-2d0cf8cf6f5d817c605f5d00 ! -d 224.0.0.0/4 -m comment --comment "name: \"flannel\" id: \"44d0c2234bc82140650b7a72dd81f95c295b1ecfe510bab0845ed00adc8b55f1\"" -j MASQUERADE

  2. 通过修改iptables规则

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
      iptables -S -t nat
      iptables -t nat -I POSTROUTING -s 172.7.100.0/24 -d 172.7.0.0/16 -j RETURN
      iptables -t nat -I POSTROUTING -s 172.7.0.0/16 ! -d 224.0.0.0/4 -j MASQUERADE
      iptables -t nat -I POSTROUTING ! -s 172.7.0.0/16 -d 172.7.100.0/24 -j RETURN
      iptables -t nat -I POSTROUTING ! -s 172.7.0.0/16 -d 172.7.100.0/24 -j MASQUERADE
      ## 上述四条规则作用分别是：
      # 集群内部pod间流量，不做NAT
      # 集群内部pod访问外部(非组播流量, 非集群内部pod)，需要走NAT(snat)出去
      # 非集群内部pod流量访问集群本节点，不需要做NAT
      # 非集群内部pod流量访问集群内部pod流量（非本节点）走NAT(snat)

      > **如有问题还请大佬指点一下吧！！！！**

       ## 网段修改方法

    `Flannel` 网卡未设置成期望的网段修改办法。

       ```shell
       # 停止flannel服务
       systemctl stop flanneld.service

       # 清理虚拟接口
       ifconfig cni0 down
       ifconfig del cni0

       # 删除缓存
       rm -rf /var/lib/cni/flannel/* && rm -rf /var/lib/cni/networks/flannel/* && ip link delete cni0 && rm -rf /var/lib/cni/network/cni0/*

       # 修改flannel 网段文件
        cat /run/flannel/subnet.env
       FLANNEL_NETWORK=172.7.0.0/16
       FLANNEL_SUBNET=172.7.130.1/24
       FLANNEL_MTU=1500
       FLANNEL_IPMASQ=false

       # 清理etcd 中网段
       /opt/etcd/etcdctl rm /coreos.com/network/subnets/172.7.57.0-24

       # 重新启动flannel
       systemctl start flanneld.service
