Kubernetes部署升级Traefik2.6

Traefik 概述

Traefik 是一个为了让部署微服务更加便捷而诞生的现代HTTP反向代理、负载均衡工具。 它支持多种后台 (Docker, Swarm, Kubernetes, Marathon, Mesos, Consul, Etcd, Zookeeper, BoltDB, Rest API, file…) 来自动化、动态的应用它的配置文件设置。

它是一个边缘路由器，它会拦截外部的请求并根据逻辑规则选择不同的操作方式，这些规则决定着这些请求到底该如何处理。Traefik 提供自动发现能力，会实时检测服务，并自动更新路由规则。
Traefik 的与众不同之处还在于它会自动发现适合你服务的配置。当 Traefik 在检查你的服务时，会找到服务的相关信息并找到合适的服务来满足对应的请求。
Traefik 兼容所有主流的集群技术，比如 Kubernetes，Docker，Docker Swarm，AWS，Mesos，Marathon等等；并且可以同时处理多种方式。（甚至可以用于在裸机上运行的比较旧的软件。）
有了Traefik，就不需要维护和同步一个单独的配置文件：一切都会自动、实时地发生（没有重新启动，没有连接中断）。使用Traefik，您可以花时间在系统中开发和部署新特性，而不是配置和维护其工作状态。

核心概念

Edge Router

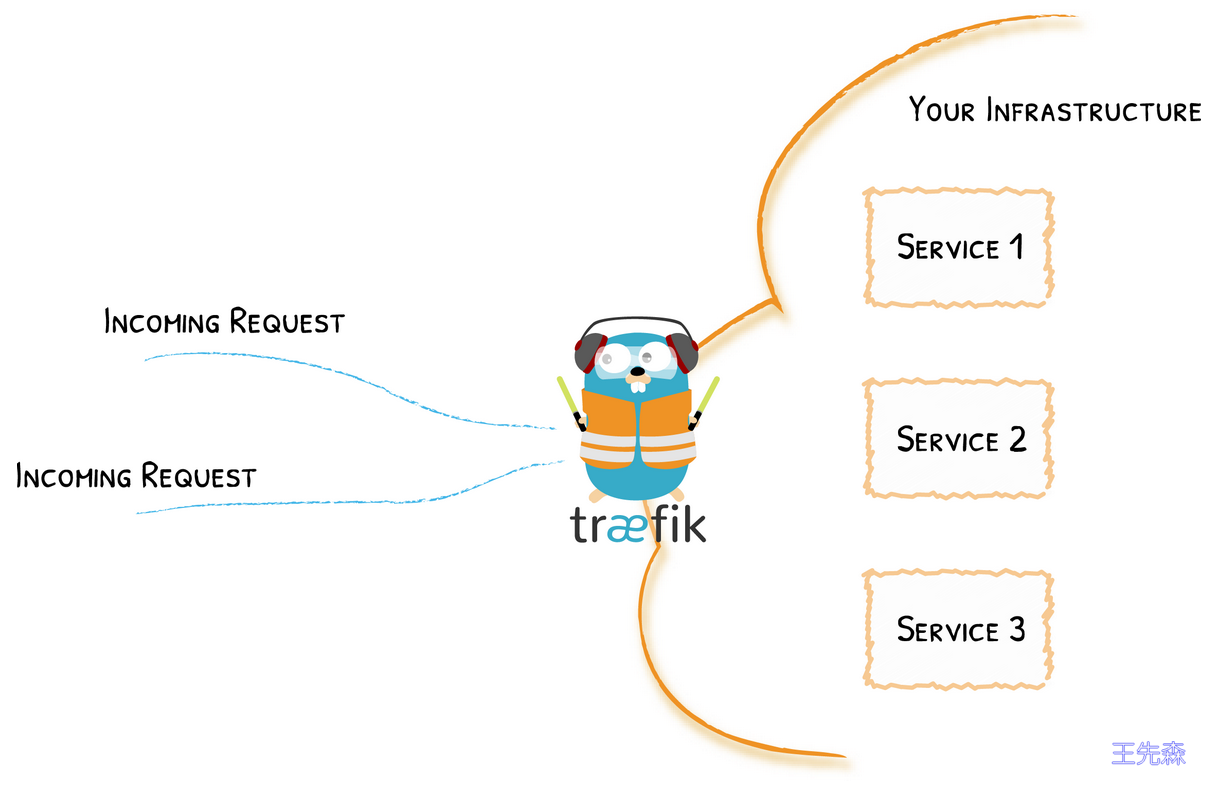

Traefik 是一个边缘路由器，是你整个平台的大门，拦截并路由每个传入的请求：它知道所有的逻辑和规则，这些规则确定哪些服务处理哪些请求；传统的反向代理需要一个配置文件，其中包含路由到你服务的所有可能路由，而 Traefik 会实时检测服务并自动更新路由规则，可以自动服务发现。

Auto Service Discovery

传统的边缘路由器（或反向代理）需要一个包含到服务的每个可能路由的配置文件，Traefik从服务本身获取它们。
在部署您的服务时，您需要附加一些信息，告诉Traefik服务可以处理的请求的特征。
这意味着在部署服务时，Traefik会立即检测到它并实时更新路由规则。反之亦然：当您从基础设施中删除服务时，路由将相应地消失。
您不再需要创建和同步混杂着IP地址或其他规则的配置文件。

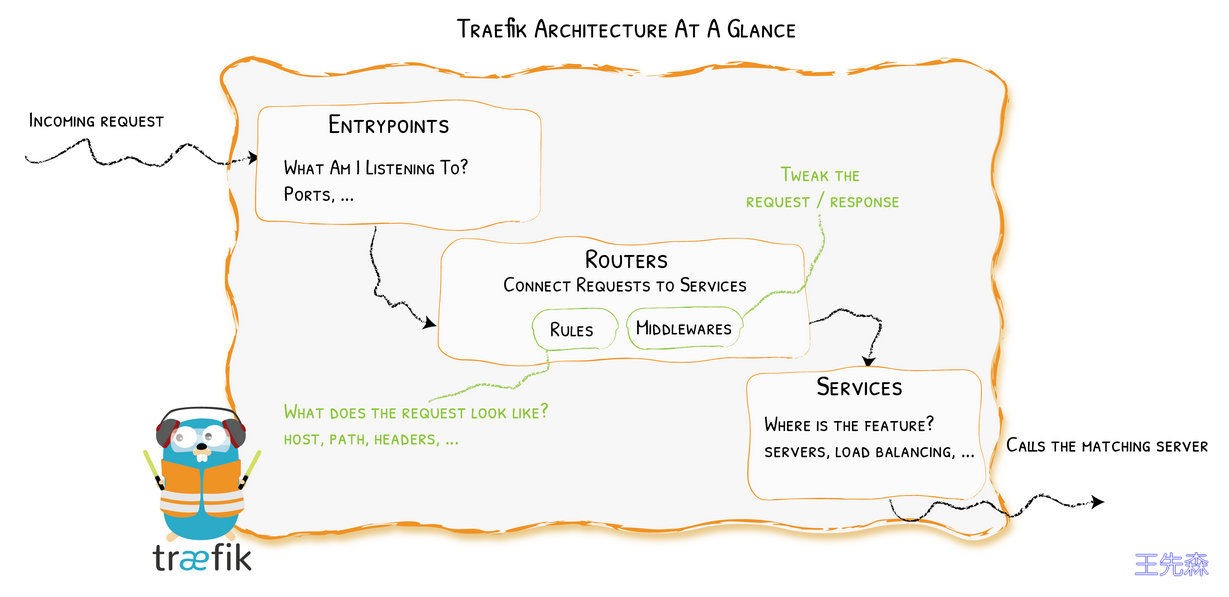

从上图可知，当请求 Traefik 时，请求首先到 entrypoints，然后分析传入的请求，查看他们是否与定义的 Routers 匹配。如果匹配，则会通过一系列 middlewares 处理，再到 traefikServices 上做流量转发，最后请求到 kubernetes的services上 。

这就涉及到以下几个重要的核心组件:

• Providers 是基础组件，Traefik 的配置发现是通过它来实现的，它可以是协调器，容器引擎，云提供商或者键值存储。Traefik 通过查询 Providers 的 API 来查询路由的相关信息，一旦检测到变化，就会动态的更新路由。
• Entrypoints 是 Traefik 的网络入口，它定义接收请求的接口，以及是否监听TCP或者UDP。
• Routers 主要用于分析请求，并负责将这些请求连接到对应的服务上去，在这个过程中，Routers还可以使用Middlewares来更新请求，比如在把请求发到服务之前添加一些Headers。
• Services 负责配置如何到达最终将处理传入请求的实际服务。
• Middlewares 用来修改请求或者根据请求来做出一些判断（authentication, rate limiting, headers, …），中间件被附件到路由上，是一种在请求发送到你的服务之前（或者在服务的响应发送到客户端之前）调整请求的一种方法。

Traefik CRD资源

官方文档

traefik通过自定义资源实现了对traefik资源的创建和管理，支持的crd资源类型如下所示：

kind	功能
IngressRoute	HTTP路由配置
Middleware	HTTP中间件配置
TraefikService	HTTP负载均衡/流量复制配置
IngressRouteTCP	TCP路由配置
MiddlewareTCP	TCP中间件配置
IngressRouteUDP	UDP路由配置
TLSOptions	TLS连接参数配置
TLSStores	TLS存储配置
ServersTransport	traefik与后端之间的传输配置

Traefik 2.x 部署

环境介绍

IP地址	主机名称	角色
10.1.1.100	k8s-master	k8s控制节点
10.1.1.110	k8s-node01	k8s运算节点
10.1.1.120	k8s-node02	k8s运算节点
10.1.1.11	boysec.cn	管理节点

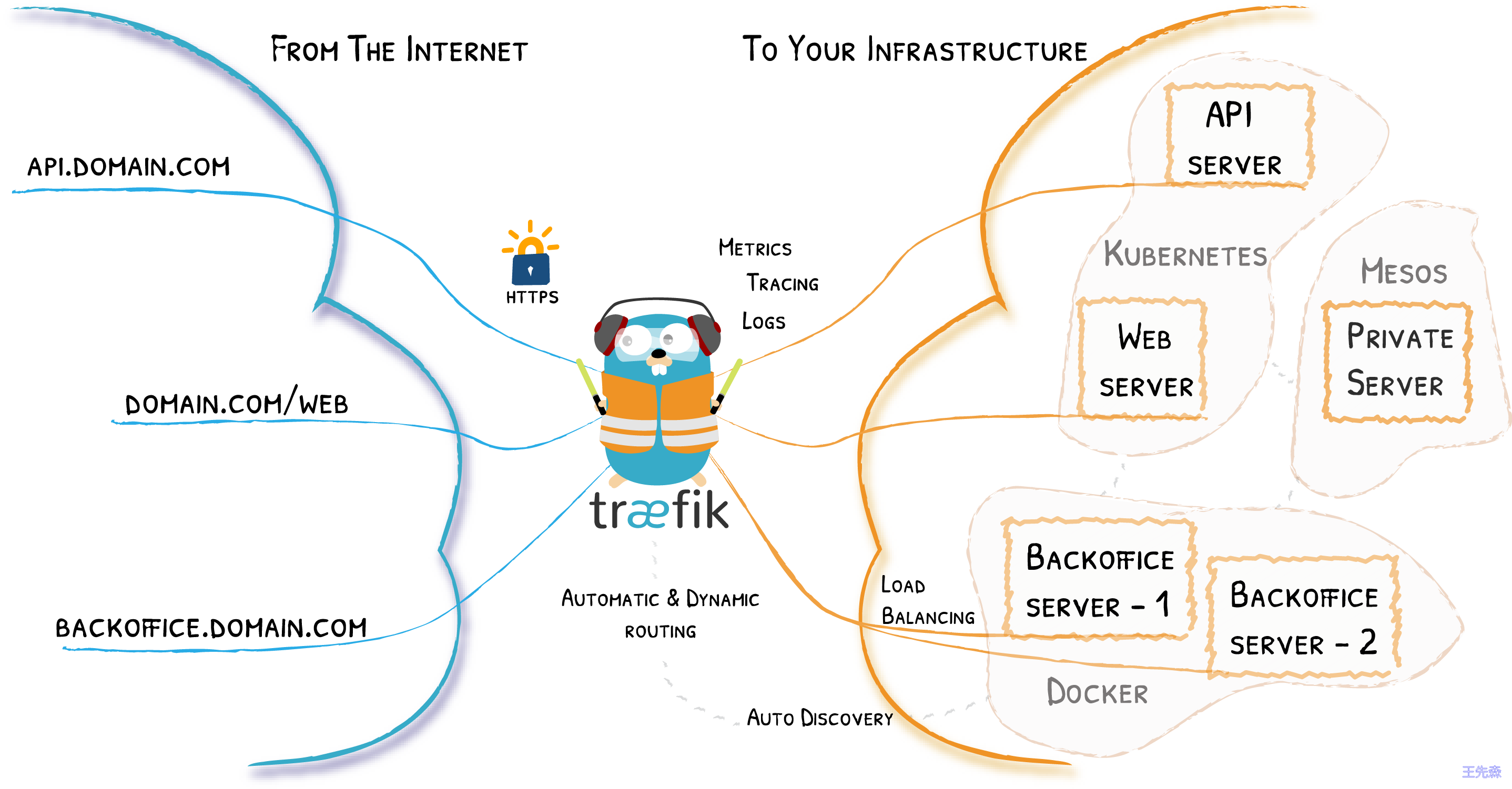

访问k8s资源需通过管理节点nginx反向代理来访问后端节点，具体实现请看架构图

安装

由于 Traefik 2.X 版本和之前的 1.X 版本不兼容，而且1.X 已经停止更新了。这里选择功能更加强大的 2.X 版本来和大家进行讲解，使用的镜像是 traefik:2.6.3。

在 traefik v2.0 版本后，开始使用 CRD（Custom Resource Definition）来完成路由配置等，所以需要提前创建 CRD 资源。

准备资源配置清单

CRDConfigMapRBACDeploymentServiceIngressClassIngress

Traefik 2.7版本以上可以选择执行kubectl apply -f https://raw.githubusercontent.com/traefik/traefik/v2.7/docs/content/reference/dynamic-configuration/kubernetes-crd-definition-v1.yml

---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
  annotations:
    controller-gen.kubebuilder.io/version: v0.6.2
  creationTimestamp: null
  name: ingressroutes.traefik.containo.us
spec:
  group: traefik.containo.us
  names:
    kind: IngressRoute
    listKind: IngressRouteList
    plural: ingressroutes
    singular: ingressroute
  scope: Namespaced
  versions:
  - name: v1alpha1
    schema:
      openAPIV3Schema:
        description: IngressRoute is an Ingress CRD specification.
        properties:
          apiVersion:
            description: 'APIVersion defines the versioned schema of this representation
              of an object. Servers should convert recognized schemas to the latest
              internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
            type: string
          kind:
            description: 'Kind is a string value representing the REST resource this
              object represents. Servers may infer this from the endpoint the client
              submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
            type: string
          metadata:
            type: object
          spec:
            description: IngressRouteSpec is a specification for a IngressRouteSpec
              resource.
            properties:
              entryPoints:
                items:
                  type: string
                type: array
              routes:
                items:
                  description: Route contains the set of routes.
                  properties:
                    kind:
                      enum:
                      - Rule
                      type: string
                    match:
                      type: string
                    middlewares:
                      items:
                        description: MiddlewareRef is a ref to the Middleware resources.
                        properties:
                          name:
                            type: string
                          namespace:
                            type: string
                        required:
                        - name
                        type: object
                      type: array
                    priority:
                      type: integer
                    services:
                      items:
                        description: Service defines an upstream to proxy traffic.
                        properties:
                          kind:
                            enum:
                            - Service
                            - TraefikService
                            type: string
                          name:
                            description: Name is a reference to a Kubernetes Service
                              object (for a load-balancer of servers), or to a TraefikService
                              object (service load-balancer, mirroring, etc). The
                              differentiation between the two is specified in the
                              Kind field.
                            type: string
                          namespace:
                            type: string
                          passHostHeader:
                            type: boolean
                          port:
                            anyOf:
                            - type: integer
                            - type: string
                            x-kubernetes-int-or-string: true
                          responseForwarding:
                            description: ResponseForwarding holds configuration for
                              the forward of the response.
                            properties:
                              flushInterval:
                                type: string
                            type: object
                          scheme:
                            type: string
                          serversTransport:
                            type: string
                          sticky:
                            description: Sticky holds the sticky configuration.
                            properties:
                              cookie:
                                description: Cookie holds the sticky configuration
                                  based on cookie.
                                properties:
                                  httpOnly:
                                    type: boolean
                                  name:
                                    type: string
                                  sameSite:
                                    type: string
                                  secure:
                                    type: boolean
                                type: object
                            type: object
                          strategy:
                            type: string
                          weight:
                            description: Weight should only be specified when Name
                              references a TraefikService object (and to be precise,
                              one that embeds a Weighted Round Robin).
                            type: integer
                        required:
                        - name
                        type: object
                      type: array
                  required:
                  - kind
                  - match
                  type: object
                type: array
              tls:
                description: "TLS contains the TLS certificates configuration of the
                  routes. To enable Let's Encrypt, use an empty TLS struct, e.g. in
                  YAML: \n \t tls: {} # inline format \n \t tls: \t   secretName:
                  # block format"
                properties:
                  certResolver:
                    type: string
                  domains:
                    items:
                      description: Domain holds a domain name with SANs.
                      properties:
                        main:
                          type: string
                        sans:
                          items:
                            type: string
                          type: array
                      type: object
                    type: array
                  options:
                    description: Options is a reference to a TLSOption, that specifies
                      the parameters of the TLS connection.
                    properties:
                      name:
                        type: string
                      namespace:
                        type: string
                    required:
                    - name
                    type: object
                  secretName:
                    description: SecretName is the name of the referenced Kubernetes
                      Secret to specify the certificate details.
                    type: string
                  store:
                    description: Store is a reference to a TLSStore, that specifies
                      the parameters of the TLS store.
                    properties:
                      name:
                        type: string
                      namespace:
                        type: string
                    required:
                    - name
                    type: object
                type: object
            required:
            - routes
            type: object
        required:
        - metadata
        - spec
        type: object
    served: true
    storage: true

---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
  annotations:
    controller-gen.kubebuilder.io/version: v0.6.2
  creationTimestamp: null
  name: ingressroutetcps.traefik.containo.us
spec:
  group: traefik.containo.us
  names:
    kind: IngressRouteTCP
    listKind: IngressRouteTCPList
    plural: ingressroutetcps
    singular: ingressroutetcp
  scope: Namespaced
  versions:
  - name: v1alpha1
    schema:
      openAPIV3Schema:
        description: IngressRouteTCP is an Ingress CRD specification.
        properties:
          apiVersion:
            description: 'APIVersion defines the versioned schema of this representation
              of an object. Servers should convert recognized schemas to the latest
              internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
            type: string
          kind:
            description: 'Kind is a string value representing the REST resource this
              object represents. Servers may infer this from the endpoint the client
              submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
            type: string
          metadata:
            type: object
          spec:
            description: IngressRouteTCPSpec is a specification for a IngressRouteTCPSpec
              resource.
            properties:
              entryPoints:
                items:
                  type: string
                type: array
              routes:
                items:
                  description: RouteTCP contains the set of routes.
                  properties:
                    match:
                      type: string
                    middlewares:
                      description: Middlewares contains references to MiddlewareTCP
                        resources.
                      items:
                        description: ObjectReference is a generic reference to a Traefik
                          resource.
                        properties:
                          name:
                            type: string
                          namespace:
                            type: string
                        required:
                        - name
                        type: object
                      type: array
                    services:
                      items:
                        description: ServiceTCP defines an upstream to proxy traffic.
                        properties:
                          name:
                            type: string
                          namespace:
                            type: string
                          port:
                            anyOf:
                            - type: integer
                            - type: string
                            x-kubernetes-int-or-string: true
                          proxyProtocol:
                            description: ProxyProtocol holds the ProxyProtocol configuration.
                            properties:
                              version:
                                type: integer
                            type: object
                          terminationDelay:
                            type: integer
                          weight:
                            type: integer
                        required:
                        - name
                        - port
                        type: object
                      type: array
                  required:
                  - match
                  type: object
                type: array
              tls:
                description: "TLSTCP contains the TLS certificates configuration of
                  the routes. To enable Let's Encrypt, use an empty TLS struct, e.g.
                  in YAML: \n \t tls: {} # inline format \n \t tls: \t   secretName:
                  # block format"
                properties:
                  certResolver:
                    type: string
                  domains:
                    items:
                      description: Domain holds a domain name with SANs.
                      properties:
                        main:
                          type: string
                        sans:
                          items:
                            type: string
                          type: array
                      type: object
                    type: array
                  options:
                    description: Options is a reference to a TLSOption, that specifies
                      the parameters of the TLS connection.
                    properties:
                      name:
                        type: string
                      namespace:
                        type: string
                    required:
                    - name
                    type: object
                  passthrough:
                    type: boolean
                  secretName:
                    description: SecretName is the name of the referenced Kubernetes
                      Secret to specify the certificate details.
                    type: string
                  store:
                    description: Store is a reference to a TLSStore, that specifies
                      the parameters of the TLS store.
                    properties:
                      name:
                        type: string
                      namespace:
                        type: string
                    required:
                    - name
                    type: object
                type: object
            required:
            - routes
            type: object
        required:
        - metadata
        - spec
        type: object
    served: true
    storage: true
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
  annotations:
    controller-gen.kubebuilder.io/version: v0.6.2
  creationTimestamp: null
  name: ingressrouteudps.traefik.containo.us
spec:
  group: traefik.containo.us
  names:
    kind: IngressRouteUDP
    listKind: IngressRouteUDPList
    plural: ingressrouteudps
    singular: ingressrouteudp
  scope: Namespaced
  versions:
  - name: v1alpha1
    schema:
      openAPIV3Schema:
        description: IngressRouteUDP is an Ingress CRD specification.
        properties:
          apiVersion:
            description: 'APIVersion defines the versioned schema of this representation
              of an object. Servers should convert recognized schemas to the latest
              internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
            type: string
          kind:
            description: 'Kind is a string value representing the REST resource this
              object represents. Servers may infer this from the endpoint the client
              submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
            type: string
          metadata:
            type: object
          spec:
            description: IngressRouteUDPSpec is a specification for a IngressRouteUDPSpec
              resource.
            properties:
              entryPoints:
                items:
                  type: string
                type: array
              routes:
                items:
                  description: RouteUDP contains the set of routes.
                  properties:
                    services:
                      items:
                        description: ServiceUDP defines an upstream to proxy traffic.
                        properties:
                          name:
                            type: string
                          namespace:
                            type: string
                          port:
                            anyOf:
                            - type: integer
                            - type: string
                            x-kubernetes-int-or-string: true
                          weight:
                            type: integer
                        required:
                        - name
                        - port
                        type: object
                      type: array
                  type: object
                type: array
            required:
            - routes
            type: object
        required:
        - metadata
        - spec
        type: object
    served: true
    storage: true
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
  annotations:
    controller-gen.kubebuilder.io/version: v0.6.2
  creationTimestamp: null
  name: middlewares.traefik.containo.us
spec:
  group: traefik.containo.us
  names:
    kind: Middleware
    listKind: MiddlewareList
    plural: middlewares
    singular: middleware
  scope: Namespaced
  versions:
  - name: v1alpha1
    schema:
      openAPIV3Schema:
        description: Middleware is a specification for a Middleware resource.
        properties:
          apiVersion:
            description: 'APIVersion defines the versioned schema of this representation
              of an object. Servers should convert recognized schemas to the latest
              internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
            type: string
          kind:
            description: 'Kind is a string value representing the REST resource this
              object represents. Servers may infer this from the endpoint the client
              submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
            type: string
          metadata:
            type: object
          spec:
            description: MiddlewareSpec holds the Middleware configuration.
            properties:
              addPrefix:
                description: AddPrefix holds the AddPrefix configuration.
                properties:
                  prefix:
                    type: string
                type: object
              basicAuth:
                description: BasicAuth holds the HTTP basic authentication configuration.
                properties:
                  headerField:
                    type: string
                  realm:
                    type: string
                  removeHeader:
                    type: boolean
                  secret:
                    type: string
                type: object
              buffering:
                description: Buffering holds the request/response buffering configuration.
                properties:
                  maxRequestBodyBytes:
                    format: int64
                    type: integer
                  maxResponseBodyBytes:
                    format: int64
                    type: integer
                  memRequestBodyBytes:
                    format: int64
                    type: integer
                  memResponseBodyBytes:
                    format: int64
                    type: integer
                  retryExpression:
                    type: string
                type: object
              chain:
                description: Chain holds a chain of middlewares.
                properties:
                  middlewares:
                    items:
                      description: MiddlewareRef is a ref to the Middleware resources.
                      properties:
                        name:
                          type: string
                        namespace:
                          type: string
                      required:
                      - name
                      type: object
                    type: array
                type: object
              circuitBreaker:
                description: CircuitBreaker holds the circuit breaker configuration.
                properties:
                  expression:
                    type: string
                type: object
              compress:
                description: Compress holds the compress configuration.
                properties:
                  excludedContentTypes:
                    items:
                      type: string
                    type: array
                  minResponseBodyBytes:
                    type: integer
                type: object
              contentType:
                description: ContentType middleware - or rather its unique `autoDetect`
                  option - specifies whether to let the `Content-Type` header, if
                  it has not been set by the backend, be automatically set to a value
                  derived from the contents of the response. As a proxy, the default
                  behavior should be to leave the header alone, regardless of what
                  the backend did with it. However, the historic default was to always
                  auto-detect and set the header if it was nil, and it is going to
                  be kept that way in order to support users currently relying on
                  it. This middleware exists to enable the correct behavior until
                  at least the default one can be changed in a future version.
                properties:
                  autoDetect:
                    type: boolean
                type: object
              digestAuth:
                description: DigestAuth holds the Digest HTTP authentication configuration.
                properties:
                  headerField:
                    type: string
                  realm:
                    type: string
                  removeHeader:
                    type: boolean
                  secret:
                    type: string
                type: object
              errors:
                description: ErrorPage holds the custom error page configuration.
                properties:
                  query:
                    type: string
                  service:
                    description: Service defines an upstream to proxy traffic.
                    properties:
                      kind:
                        enum:
                        - Service
                        - TraefikService
                        type: string
                      name:
                        description: Name is a reference to a Kubernetes Service object
                          (for a load-balancer of servers), or to a TraefikService
                          object (service load-balancer, mirroring, etc). The differentiation
                          between the two is specified in the Kind field.
                        type: string
                      namespace:
                        type: string
                      passHostHeader:
                        type: boolean
                      port:
                        anyOf:
                        - type: integer
                        - type: string
                        x-kubernetes-int-or-string: true
                      responseForwarding:
                        description: ResponseForwarding holds configuration for the
                          forward of the response.
                        properties:
                          flushInterval:
                            type: string
                        type: object
                      scheme:
                        type: string
                      serversTransport:
                        type: string
                      sticky:
                        description: Sticky holds the sticky configuration.
                        properties:
                          cookie:
                            description: Cookie holds the sticky configuration based
                              on cookie.
                            properties:
                              httpOnly:
                                type: boolean
                              name:
                                type: string
                              sameSite:
                                type: string
                              secure:
                                type: boolean
                            type: object
                        type: object
                      strategy:
                        type: string
                      weight:
                        description: Weight should only be specified when Name references
                          a TraefikService object (and to be precise, one that embeds
                          a Weighted Round Robin).
                        type: integer
                    required:
                    - name
                    type: object
                  status:
                    items:
                      type: string
                    type: array
                type: object
              forwardAuth:
                description: ForwardAuth holds the http forward authentication configuration.
                properties:
                  address:
                    type: string
                  authRequestHeaders:
                    items:
                      type: string
                    type: array
                  authResponseHeaders:
                    items:
                      type: string
                    type: array
                  authResponseHeadersRegex:
                    type: string
                  tls:
                    description: ClientTLS holds TLS specific configurations as client.
                    properties:
                      caOptional:
                        type: boolean
                      caSecret:
                        type: string
                      certSecret:
                        type: string
                      insecureSkipVerify:
                        type: boolean
                    type: object
                  trustForwardHeader:
                    type: boolean
                type: object
              headers:
                description: Headers holds the custom header configuration.
                properties:
                  accessControlAllowCredentials:
                    description: AccessControlAllowCredentials is only valid if true.
                      false is ignored.
                    type: boolean
                  accessControlAllowHeaders:
                    description: AccessControlAllowHeaders must be used in response
                      to a preflight request with Access-Control-Request-Headers set.
                    items:
                      type: string
                    type: array
                  accessControlAllowMethods:
                    description: AccessControlAllowMethods must be used in response
                      to a preflight request with Access-Control-Request-Method set.
                    items:
                      type: string
                    type: array
                  accessControlAllowOriginList:
                    description: AccessControlAllowOriginList is a list of allowable
                      origins. Can also be a wildcard origin "*".
                    items:
                      type: string
                    type: array
                  accessControlAllowOriginListRegex:
                    description: AccessControlAllowOriginListRegex is a list of allowable
                      origins written following the Regular Expression syntax (https://golang.org/pkg/regexp/).
                    items:
                      type: string
                    type: array
                  accessControlExposeHeaders:
                    description: AccessControlExposeHeaders sets valid headers for
                      the response.
                    items:
                      type: string
                    type: array
                  accessControlMaxAge:
                    description: AccessControlMaxAge sets the time that a preflight
                      request may be cached.
                    format: int64
                    type: integer
                  addVaryHeader:
                    description: AddVaryHeader controls if the Vary header is automatically
                      added/updated when the AccessControlAllowOriginList is set.
                    type: boolean
                  allowedHosts:
                    items:
                      type: string
                    type: array
                  browserXssFilter:
                    type: boolean
                  contentSecurityPolicy:
                    type: string
                  contentTypeNosniff:
                    type: boolean
                  customBrowserXSSValue:
                    type: string
                  customFrameOptionsValue:
                    type: string
                  customRequestHeaders:
                    additionalProperties:
                      type: string
                    type: object
                  customResponseHeaders:
                    additionalProperties:
                      type: string
                    type: object
                  featurePolicy:
                    description: 'Deprecated: use PermissionsPolicy instead.'
                    type: string
                  forceSTSHeader:
                    type: boolean
                  frameDeny:
                    type: boolean
                  hostsProxyHeaders:
                    items:
                      type: string
                    type: array
                  isDevelopment:
                    type: boolean
                  permissionsPolicy:
                    type: string
                  publicKey:
                    type: string
                  referrerPolicy:
                    type: string
                  sslForceHost:
                    description: 'Deprecated: use RedirectRegex instead.'
                    type: boolean
                  sslHost:
                    description: 'Deprecated: use RedirectRegex instead.'
                    type: string
                  sslProxyHeaders:
                    additionalProperties:
                      type: string
                    type: object
                  sslRedirect:
                    description: 'Deprecated: use EntryPoint redirection or RedirectScheme
                      instead.'
                    type: boolean
                  sslTemporaryRedirect:
                    description: 'Deprecated: use EntryPoint redirection or RedirectScheme
                      instead.'
                    type: boolean
                  stsIncludeSubdomains:
                    type: boolean
                  stsPreload:
                    type: boolean
                  stsSeconds:
                    format: int64
                    type: integer
                type: object
              inFlightReq:
                description: InFlightReq limits the number of requests being processed
                  and served concurrently.
                properties:
                  amount:
                    format: int64
                    type: integer
                  sourceCriterion:
                    description: SourceCriterion defines what criterion is used to
                      group requests as originating from a common source. If none
                      are set, the default is to use the request's remote address
                      field. All fields are mutually exclusive.
                    properties:
                      ipStrategy:
                        description: IPStrategy holds the ip strategy configuration.
                        properties:
                          depth:
                            type: integer
                          excludedIPs:
                            items:
                              type: string
                            type: array
                        type: object
                      requestHeaderName:
                        type: string
                      requestHost:
                        type: boolean
                    type: object
                type: object
              ipWhiteList:
                description: IPWhiteList holds the ip white list configuration.
                properties:
                  ipStrategy:
                    description: IPStrategy holds the ip strategy configuration.
                    properties:
                      depth:
                        type: integer
                      excludedIPs:
                        items:
                          type: string
                        type: array
                    type: object
                  sourceRange:
                    items:
                      type: string
                    type: array
                type: object
              passTLSClientCert:
                description: PassTLSClientCert holds the TLS client cert headers configuration.
                properties:
                  info:
                    description: TLSClientCertificateInfo holds the client TLS certificate
                      info configuration.
                    properties:
                      issuer:
                        description: TLSClientCertificateIssuerDNInfo holds the client
                          TLS certificate distinguished name info configuration. cf
                          https://tools.ietf.org/html/rfc3739
                        properties:
                          commonName:
                            type: boolean
                          country:
                            type: boolean
                          domainComponent:
                            type: boolean
                          locality:
                            type: boolean
                          organization:
                            type: boolean
                          province:
                            type: boolean
                          serialNumber:
                            type: boolean
                        type: object
                      notAfter:
                        type: boolean
                      notBefore:
                        type: boolean
                      sans:
                        type: boolean
                      serialNumber:
                        type: boolean
                      subject:
                        description: TLSClientCertificateSubjectDNInfo holds the client
                          TLS certificate distinguished name info configuration. cf
                          https://tools.ietf.org/html/rfc3739
                        properties:
                          commonName:
                            type: boolean
                          country:
                            type: boolean
                          domainComponent:
                            type: boolean
                          locality:
                            type: boolean
                          organization:
                            type: boolean
                          organizationalUnit:
                            type: boolean
                          province:
                            type: boolean
                          serialNumber:
                            type: boolean
                        type: object
                    type: object
                  pem:
                    type: boolean
                type: object
              plugin:
                additionalProperties:
                  x-kubernetes-preserve-unknown-fields: true
                type: object
              rateLimit:
                description: RateLimit holds the rate limiting configuration for a
                  given router.
                properties:
                  average:
                    format: int64
                    type: integer
                  burst:
                    format: int64
                    type: integer
                  period:
                    anyOf:
                    - type: integer
                    - type: string
                    x-kubernetes-int-or-string: true
                  sourceCriterion:
                    description: SourceCriterion defines what criterion is used to
                      group requests as originating from a common source. If none
                      are set, the default is to use the request's remote address
                      field. All fields are mutually exclusive.
                    properties:
                      ipStrategy:
                        description: IPStrategy holds the ip strategy configuration.
                        properties:
                          depth:
                            type: integer
                          excludedIPs:
                            items:
                              type: string
                            type: array
                        type: object
                      requestHeaderName:
                        type: string
                      requestHost:
                        type: boolean
                    type: object
                type: object
              redirectRegex:
                description: RedirectRegex holds the redirection configuration.
                properties:
                  permanent:
                    type: boolean
                  regex:
                    type: string
                  replacement:
                    type: string
                type: object
              redirectScheme:
                description: RedirectScheme holds the scheme redirection configuration.
                properties:
                  permanent:
                    type: boolean
                  port:
                    type: string
                  scheme:
                    type: string
                type: object
              replacePath:
                description: ReplacePath holds the ReplacePath configuration.
                properties:
                  path:
                    type: string
                type: object
              replacePathRegex:
                description: ReplacePathRegex holds the ReplacePathRegex configuration.
                properties:
                  regex:
                    type: string
                  replacement:
                    type: string
                type: object
              retry:
                description: Retry holds the retry configuration.
                properties:
                  attempts:
                    type: integer
                  initialInterval:
                    anyOf:
                    - type: integer
                    - type: string
                    x-kubernetes-int-or-string: true
                type: object
              stripPrefix:
                description: StripPrefix holds the StripPrefix configuration.
                properties:
                  forceSlash:
                    type: boolean
                  prefixes:
                    items:
                      type: string
                    type: array
                type: object
              stripPrefixRegex:
                description: StripPrefixRegex holds the StripPrefixRegex configuration.
                properties:
                  regex:
                    items:
                      type: string
                    type: array
                type: object
            type: object
        required:
        - metadata
        - spec
        type: object
    served: true
    storage: true
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
  annotations:
    controller-gen.kubebuilder.io/version: v0.6.2
  creationTimestamp: null
  name: middlewaretcps.traefik.containo.us
spec:
  group: traefik.containo.us
  names:
    kind: MiddlewareTCP
    listKind: MiddlewareTCPList
    plural: middlewaretcps
    singular: middlewaretcp
  scope: Namespaced
  versions:
  - name: v1alpha1
    schema:
      openAPIV3Schema:
        description: MiddlewareTCP is a specification for a MiddlewareTCP resource.
        properties:
          apiVersion:
            description: 'APIVersion defines the versioned schema of this representation
              of an object. Servers should convert recognized schemas to the latest
              internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
            type: string
          kind:
            description: 'Kind is a string value representing the REST resource this
              object represents. Servers may infer this from the endpoint the client
              submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
            type: string
          metadata:
            type: object
          spec:
            description: MiddlewareTCPSpec holds the MiddlewareTCP configuration.
            properties:
              inFlightConn:
                description: TCPInFlightConn holds the TCP in flight connection configuration.
                properties:
                  amount:
                    format: int64
                    type: integer
                type: object
              ipWhiteList:
                description: TCPIPWhiteList holds the TCP ip white list configuration.
                properties:
                  sourceRange:
                    items:
                      type: string
                    type: array
                type: object
            type: object
        required:
        - metadata
        - spec
        type: object
    served: true
    storage: true
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
  annotations:
    controller-gen.kubebuilder.io/version: v0.6.2
  creationTimestamp: null
  name: serverstransports.traefik.containo.us
spec:
  group: traefik.containo.us
  names:
    kind: ServersTransport
    listKind: ServersTransportList
    plural: serverstransports
    singular: serverstransport
  scope: Namespaced
  versions:
  - name: v1alpha1
    schema:
      openAPIV3Schema:
        description: ServersTransport is a specification for a ServersTransport resource.
        properties:
          apiVersion:
            description: 'APIVersion defines the versioned schema of this representation
              of an object. Servers should convert recognized schemas to the latest
              internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
            type: string
          kind:
            description: 'Kind is a string value representing the REST resource this
              object represents. Servers may infer this from the endpoint the client
              submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
            type: string
          metadata:
            type: object
          spec:
            description: ServersTransportSpec options to configure communication between
              Traefik and the servers.
            properties:
              certificatesSecrets:
                description: Certificates for mTLS.
                items:
                  type: string
                type: array
              disableHTTP2:
                description: Disable HTTP/2 for connections with backend servers.
                type: boolean
              forwardingTimeouts:
                description: Timeouts for requests forwarded to the backend servers.
                properties:
                  dialTimeout:
                    anyOf:
                    - type: integer
                    - type: string
                    description: DialTimeout is the amount of time to wait until a
                      connection to a backend server can be established. If zero,
                      no timeout exists.
                    x-kubernetes-int-or-string: true
                  idleConnTimeout:
                    anyOf:
                    - type: integer
                    - type: string
                    description: IdleConnTimeout is the maximum period for which an
                      idle HTTP keep-alive connection will remain open before closing
                      itself.
                    x-kubernetes-int-or-string: true
                  pingTimeout:
                    anyOf:
                    - type: integer
                    - type: string
                    description: PingTimeout is the timeout after which the HTTP/2
                      connection will be closed if a response to ping is not received.
                    x-kubernetes-int-or-string: true
                  readIdleTimeout:
                    anyOf:
                    - type: integer
                    - type: string
                    description: ReadIdleTimeout is the timeout after which a health
                      check using ping frame will be carried out if no frame is received
                      on the HTTP/2 connection. If zero, no health check is performed.
                    x-kubernetes-int-or-string: true
                  responseHeaderTimeout:
                    anyOf:
                    - type: integer
                    - type: string
                    description: ResponseHeaderTimeout is the amount of time to wait
                      for a server's response headers after fully writing the request
                      (including its body, if any). If zero, no timeout exists.
                    x-kubernetes-int-or-string: true
                type: object
              insecureSkipVerify:
                description: Disable SSL certificate verification.
                type: boolean
              maxIdleConnsPerHost:
                description: If non-zero, controls the maximum idle (keep-alive) to
                  keep per-host. If zero, DefaultMaxIdleConnsPerHost is used.
                type: integer
              peerCertURI:
                description: URI used to match against SAN URI during the peer certificate
                  verification.
                type: string
              rootCAsSecrets:
                description: Add cert file for self-signed certificate.
                items:
                  type: string
                type: array
              serverName:
                description: ServerName used to contact the server.
                type: string
            type: object
        required:
        - metadata
        - spec
        type: object
    served: true
    storage: true
---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
  annotations:
    controller-gen.kubebuilder.io/version: v0.6.2
  creationTimestamp: null
  name: tlsoptions.traefik.containo.us
spec:
  group: traefik.containo.us
  names:
    kind: TLSOption
    listKind: TLSOptionList
    plural: tlsoptions
    singular: tlsoption
  scope: Namespaced
  versions:
  - name: v1alpha1
    schema:
      openAPIV3Schema:
        description: TLSOption is a specification for a TLSOption resource.
        properties:
          apiVersion:
            description: 'APIVersion defines the versioned schema of this representation
              of an object. Servers should convert recognized schemas to the latest
              internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
            type: string
          kind:
            description: 'Kind is a string value representing the REST resource this
              object represents. Servers may infer this from the endpoint the client
              submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
            type: string
          metadata:
            type: object
          spec:
            description: TLSOptionSpec configures TLS for an entry point.
            properties:
              alpnProtocols:
                items:
                  type: string
                type: array
              cipherSuites:
                items:
                  type: string
                type: array
              clientAuth:
                description: ClientAuth defines the parameters of the client authentication
                  part of the TLS connection, if any.
                properties:
                  clientAuthType:
                    description: ClientAuthType defines the client authentication
                      type to apply.
                    enum:
                    - NoClientCert
                    - RequestClientCert
                    - RequireAnyClientCert
                    - VerifyClientCertIfGiven
                    - RequireAndVerifyClientCert
                    type: string
                  secretNames:
                    description: SecretName is the name of the referenced Kubernetes
                      Secret to specify the certificate details.
                    items:
                      type: string
                    type: array
                type: object
              curvePreferences:
                items:
                  type: string
                type: array
              maxVersion:
                type: string
              minVersion:
                type: string
              preferServerCipherSuites:
                type: boolean
              sniStrict:
                type: boolean
            type: object
        required:
        - metadata
        - spec
        type: object
    served: true
    storage: true

---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
  annotations:
    controller-gen.kubebuilder.io/version: v0.6.2
  creationTimestamp: null
  name: tlsstores.traefik.containo.us
spec:
  group: traefik.containo.us
  names:
    kind: TLSStore
    listKind: TLSStoreList
    plural: tlsstores
    singular: tlsstore
  scope: Namespaced
  versions:
  - name: v1alpha1
    schema:
      openAPIV3Schema:
        description: TLSStore is a specification for a TLSStore resource.
        properties:
          apiVersion:
            description: 'APIVersion defines the versioned schema of this representation
              of an object. Servers should convert recognized schemas to the latest
              internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
            type: string
          kind:
            description: 'Kind is a string value representing the REST resource this
              object represents. Servers may infer this from the endpoint the client
              submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
            type: string
          metadata:
            type: object
          spec:
            description: TLSStoreSpec configures a TLSStore resource.
            properties:
              defaultCertificate:
                description: DefaultCertificate holds a secret name for the TLSOption
                  resource.
                properties:
                  secretName:
                    description: SecretName is the name of the referenced Kubernetes
                      Secret to specify the certificate details.
                    type: string
                required:
                - secretName
                type: object
            required:
            - defaultCertificate
            type: object
        required:
        - metadata
        - spec
        type: object
    served: true
    storage: true

---
apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
  annotations:
    controller-gen.kubebuilder.io/version: v0.6.2
  creationTimestamp: null
  name: traefikservices.traefik.containo.us
spec:
  group: traefik.containo.us
  names:
    kind: TraefikService
    listKind: TraefikServiceList
    plural: traefikservices
    singular: traefikservice
  scope: Namespaced
  versions:
  - name: v1alpha1
    schema:
      openAPIV3Schema:
        description: TraefikService is the specification for a service (that an IngressRoute
          refers to) that is usually not a terminal service (i.e. not a pod of servers),
          as opposed to a Kubernetes Service. That is to say, it usually refers to
          other (children) services, which themselves can be TraefikServices or Services.
        properties:
          apiVersion:
            description: 'APIVersion defines the versioned schema of this representation
              of an object. Servers should convert recognized schemas to the latest
              internal value, and may reject unrecognized values. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#resources'
            type: string
          kind:
            description: 'Kind is a string value representing the REST resource this
              object represents. Servers may infer this from the endpoint the client
              submits requests to. Cannot be updated. In CamelCase. More info: https://git.k8s.io/community/contributors/devel/sig-architecture/api-conventions.md#types-kinds'
            type: string
          metadata:
            type: object
          spec:
            description: ServiceSpec defines whether a TraefikService is a load-balancer
              of services or a mirroring service.
            properties:
              mirroring:
                description: Mirroring defines a mirroring service, which is composed
                  of a main load-balancer, and a list of mirrors.
                properties:
                  kind:
                    enum:
                    - Service
                    - TraefikService
                    type: string
                  maxBodySize:
                    format: int64
                    type: integer
                  mirrors:
                    items:
                      description: MirrorService defines one of the mirrors of a Mirroring
                        service.
                      properties:
                        kind:
                          enum:
                          - Service
                          - TraefikService
                          type: string
                        name:
                          description: Name is a reference to a Kubernetes Service
                            object (for a load-balancer of servers), or to a TraefikService
                            object (service load-balancer, mirroring, etc). The differentiation
                            between the two is specified in the Kind field.
                          type: string
                        namespace:
                          type: string
                        passHostHeader:
                          type: boolean
                        percent:
                          type: integer
                        port:
                          anyOf:
                          - type: integer
                          - type: string
                          x-kubernetes-int-or-string: true
                        responseForwarding:
                          description: ResponseForwarding holds configuration for
                            the forward of the response.
                          properties:
                            flushInterval:
                              type: string
                          type: object
                        scheme:
                          type: string
                        serversTransport:
                          type: string
                        sticky:
                          description: Sticky holds the sticky configuration.
                          properties:
                            cookie:
                              description: Cookie holds the sticky configuration based
                                on cookie.
                              properties:
                                httpOnly:
                                  type: boolean
                                name:
                                  type: string
                                sameSite:
                                  type: string
                                secure:
                                  type: boolean
                              type: object
                          type: object
                        strategy:
                          type: string
                        weight:
                          description: Weight should only be specified when Name references
                            a TraefikService object (and to be precise, one that embeds
                            a Weighted Round Robin).
                          type: integer
                      required:
                      - name
                      type: object
                    type: array
                  name:
                    description: Name is a reference to a Kubernetes Service object
                      (for a load-balancer of servers), or to a TraefikService object
                      (service load-balancer, mirroring, etc). The differentiation
                      between the two is specified in the Kind field.
                    type: string
                  namespace:
                    type: string
                  passHostHeader:
                    type: boolean
                  port:
                    anyOf:
                    - type: integer
                    - type: string
                    x-kubernetes-int-or-string: true
                  responseForwarding:
                    description: ResponseForwarding holds configuration for the forward
                      of the response.
                    properties:
                      flushInterval:
                        type: string
                    type: object
                  scheme:
                    type: string
                  serversTransport:
                    type: string
                  sticky:
                    description: Sticky holds the sticky configuration.
                    properties:
                      cookie:
                        description: Cookie holds the sticky configuration based on
                          cookie.
                        properties:
                          httpOnly:
                            type: boolean
                          name:
                            type: string
                          sameSite:
                            type: string
                          secure:
                            type: boolean
                        type: object
                    type: object
                  strategy:
                    type: string
                  weight:
                    description: Weight should only be specified when Name references
                      a TraefikService object (and to be precise, one that embeds
                      a Weighted Round Robin).
                    type: integer
                required:
                - name
                type: object
              weighted:
                description: WeightedRoundRobin defines a load-balancer of services.
                properties:
                  services:
                    items:
                      description: Service defines an upstream to proxy traffic.
                      properties:
                        kind:
                          enum:
                          - Service
                          - TraefikService
                          type: string
                        name:
                          description: Name is a reference to a Kubernetes Service
                            object (for a load-balancer of servers), or to a TraefikService
                            object (service load-balancer, mirroring, etc). The differentiation
                            between the two is specified in the Kind field.
                          type: string
                        namespace:
                          type: string
                        passHostHeader:
                          type: boolean
                        port:
                          anyOf:
                          - type: integer
                          - type: string
                          x-kubernetes-int-or-string: true
                        responseForwarding:
                          description: ResponseForwarding holds configuration for
                            the forward of the response.
                          properties:
                            flushInterval:
                              type: string
                          type: object
                        scheme:
                          type: string
                        serversTransport:
                          type: string
                        sticky:
                          description: Sticky holds the sticky configuration.
                          properties:
                            cookie:
                              description: Cookie holds the sticky configuration based
                                on cookie.
                              properties:
                                httpOnly:
                                  type: boolean
                                name:
                                  type: string
                                sameSite:
                                  type: string
                                secure:
                                  type: boolean
                              type: object
                          type: object
                        strategy:
                          type: string
                        weight:
                          description: Weight should only be specified when Name references
                            a TraefikService object (and to be precise, one that embeds
                            a Weighted Round Robin).
                          type: integer
                      required:
                      - name
                      type: object
                    type: array
                  sticky:
                    description: Sticky holds the sticky configuration.
                    properties:
                      cookie:
                        description: Cookie holds the sticky configuration based on
                          cookie.
                        properties:
                          httpOnly:
                            type: boolean
                          name:
                            type: string
                          sameSite:
                            type: string
                          secure:
                            type: boolean
                        type: object
                    type: object
                type: object
            type: object
        required:
        - metadata
        - spec
        type: object
    served: true
    storage: true

由于 Traefik 配置很多，通过 CLI 定义不是很方便，一般时候都会通过配置文件配置 Traefik 参数，然后存入 ConfigMap，将其挂入 Traefik 中。

kind: ConfigMap
apiVersion: v1
metadata:
  name: traefik-config
  namespace: kube-system
data:
  traefik.yaml: |-
    global:
      checkNewVersion: false    # 周期性的检查是否有新版本发布
      sendAnonymousUsage: false # 周期性的匿名发送使用统计信息
    ping: ""                    ## 启用 Ping
    websocket: true
    serversTransport:
      insecureSkipVerify: true  ## Traefik 忽略验证代理服务的 TLS 证书
    api:
      insecure: true            ## 允许 HTTP 方式访问 API
      dashboard: true           ## 启用 Dashboard
      debug: false              ## 启用 Debug 调试模式
    metrics:
      prometheus:               # 配置 Prometheus 监控指标数据，并使用默认配置
        addRoutersLabels: true  # 添加routers metrics
        entryPoint: "metrics"   # 指定metrics监听地址
    entryPoints:
      web:
        address: ":80"          ## 配置 80 端口，并设置入口名称为 web
        forwardedHeaders:       # 通过X-Forwarded-For 获取真是访问IP
          trustedIPs:           # Traefik配置为信任转发X-Forwarded-For信息
            - "127.0.0.1"
            - "172.17.130.1"
      websecure:
        address: ":443"           # 配置443端口，并设置入口名称为 websecure
      traefik:
        address: ":8090"          ## 配置 8090 端口，并设置入口名称为 dashboard
      metrics:
        address: ":9100"          ## 配置 9100 端口，作为metrics收集入口
      # tcpep:
      #   address: ":9200"        # 配置9200端口，作为tcp入口
      # udpep:
      #   address: ":9300/udp"    # 配置9300端口，作为udp入口
    providers:
      # kubernetesGateway: ""     # 启用 Kubernetes Gateway API
      kubernetesCRD:              # 启用Kubernetes CRD方式来配置路由规则
        ingressClass: ""          # 指定traefik的ingressClass名称
        allowCrossNamespace: true   #允许跨namespace
        allowEmptyServices: true    #允许空endpoints的service
      kubernetesIngress: ""     ## 启用 Kubernetes Ingress 方式来配置路由规则
    log:
      filePath: ""              ## 设置调试日志文件存储路径，如果为空则输出到控制台
      level: "ERROR"              ## 设置调试日志级别
      format: json              ## 设置调试日志格式
    accessLog:
      filePath: ""              ## 设置访问日志文件存储路径，如果为空则输出到控制台
      format: json              ## 设置访问调试日志格式
      bufferingSize: 0          ## 设置访问日志缓存行数
      filters:
        statusCodes: ["200"]    ## 设置只保留指定状态码范围内的访问日志
        retryAttempts: true     ## 设置代理访问重试失败时，保留访问日志
        minDuration: 20         ## 设置保留请求时间超过指定持续时间的访问日志
      fields:                   ## 设置访问日志中的字段是否保留（keep 保留、drop 不保留）
        defaultMode: keep       ## 设置默认保留访问日志字段
        names:                  ## 针对访问日志特别字段特别配置保留模式
          ClientUsername: drop
          StartUTC: drop        # 禁用日志timestamp使用UTC
        headers:                ## 设置 Header 中字段是否保留
          defaultMode: keep     ## 设置默认保留 Header 中字段
          names:                ## 针对 Header 中特别字段特别配置保留模式
            User-Agent: redact   # 可以针对指定agent
            Authorization: drop
            Content-Type: keep

Kubernetes 在 1.6 版本中引入了基于角色的访问控制（RBAC）策略，方便对 Kubernetes 资源和 API 进行细粒度控制。Traefik 需要一定的权限，所以，这里提前创建好 Traefik ServiceAccount 并分配一定的权限。

apiVersion: v1
kind: ServiceAccount
metadata:
  namespace: kube-system
  name: traefik-ingress-controller
---
apiVersion: v1
kind: ServiceAccount
metadata:
  namespace: kube-system
  name: traefik-ingress-controller
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: traefik-ingress-controller

rules:
  - apiGroups:
      - ""
    resources:
      - services
      - endpoints
      - secrets
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - extensions
      - networking.k8s.io
    resources:
      - ingresses
      - ingressclasses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - extensions
    resources:
      - ingresses/status
    verbs:
      - update
  - apiGroups:
      - traefik.containo.us
    resources:
      - middlewares
      - middlewaretcps
      - ingressroutes
      - traefikservices
      - ingressroutetcps
      - ingressrouteudps
      - tlsoptions
      - tlsstores
      - serverstransports
    verbs:
      - get
      - list
      - watch

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: traefik-ingress-controller

roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: traefik-ingress-controller
subjects:
  - kind: ServiceAccount
    name: traefik-ingress-controller
    namespace: kube-system

下面将用 Deployment 方式部署 Traefik，便于在多服务器间扩展，用 hostport 方式绑定服务器 30080端口，方便流量通过物理机进入 Kubernetes 内部。

apiVersion: apps/v1
kind: Deployment
metadata:
  name: traefik-v2
  namespace: kube-system
  labels:
    app: traefik-v2
spec:
  replicas: 2
  selector:
    matchLabels:
      app: traefik-v2
  template:
    metadata:
      labels:
        app: traefik-v2
    spec:
      serviceAccountName: traefik-ingress-controller
      terminationGracePeriodSeconds: 1
      containers:
        - name: traefik-v2
          image: traefik:v2.6.3
          args:
            - --configfile=/config/traefik.yaml
          ports:
            - name: web
              containerPort: 80
              hostPort: 30080        # 将容器端口绑定所在真实服务器的 30080 端口（nginx反向代理配置端口）
              protocol: TCP          # 使用UDP, TCP或SCTP协议，默认为TCP
            - name: admin
              containerPort: 8090    # Traefik Dashboard 端口
          securityContext:
            capabilities:
              drop:
                - ALL
              add:
                - NET_BIND_SERVICE
          volumeMounts:
          - mountPath: "/config"
            name: "config"
      volumes:
        - name: config
          configMap:
            name: traefik-config

apiVersion: v1
kind: Service
metadata:
  name: traefik-v2
  namespace: kube-system
spec:
  selector:
    app: traefik-v2
  ports:
    - protocol: TCP
      port: 80
      name: web
    - protocol: TCP
      port: 8090
      name: admin

如果在ConfigMap中未指定traefik的ingressClass名称，使用默认的名称则可不应用此资源配置清单。

apiVersion: networking.k8s.io/v1
kind: IngressClass
metadata:
  labels:
    app: traefik-v2
  name: traefik
spec:
  controller: traefik.io/ingress-controller

Traefik 应用已经部署完成，但是想让外部访问 Kubernetes 内部服务，还需要配置路由规则，上面部署 Traefik 时开启了 Traefik Dashboard，这是 Traefik 提供的视图看板，所以，首先配置基于 HTTP 的 Traefik Dashboard 路由规则，使外部能够访问 Traefik Dashboard。然后，再配置基于 HTTPS 的 Kubernetes Dashboard 的路由规则，这里使用 Ingress 方式进行演示。

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: traefik-web-ui
  namespace: kube-system
  annotations:
    kubernetes.io/ingress.class: traefik
    traefik.ingress.kubernetes.io/router.entrypoints: web
spec:
  rules:
  - host: traefik.od.com
    http:
      paths:
      - pathType: Prefix
        path: /
        backend:
          service:
            name: traefik-v2
            port:
              number: 8090

更多路由规则可言参考 Traefik 文档：https://doc.traefik.io/traefik/v2.6/routing/providers/kubernetes-ingress/

应用资源配置清单

kubectl apply -f .

验证

客户端想通过域名访问服务，必须要进行 DNS 解析，由于这里没有 DNS 服务器进行域名解析，所以修改 hosts 文件将 Traefik 所在节点服务器的 IP 和自定义 Host 绑定。打开电脑的 Hosts 配置文件，往其加入下面配置：

10.1.1.11 traefik.od.com

访问对应应用
